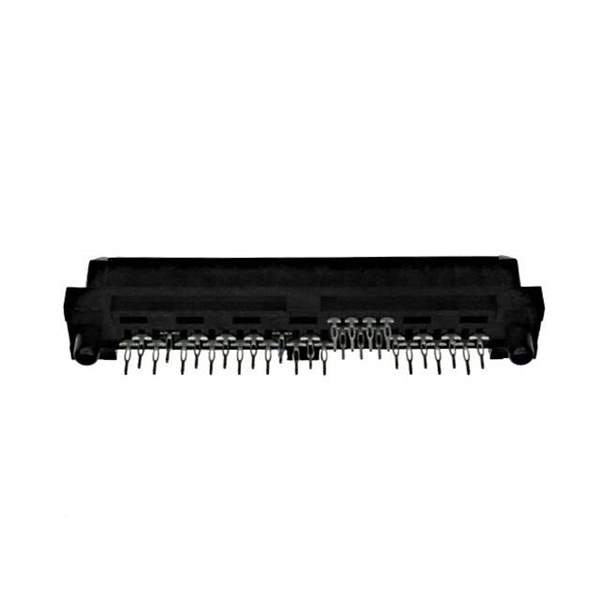

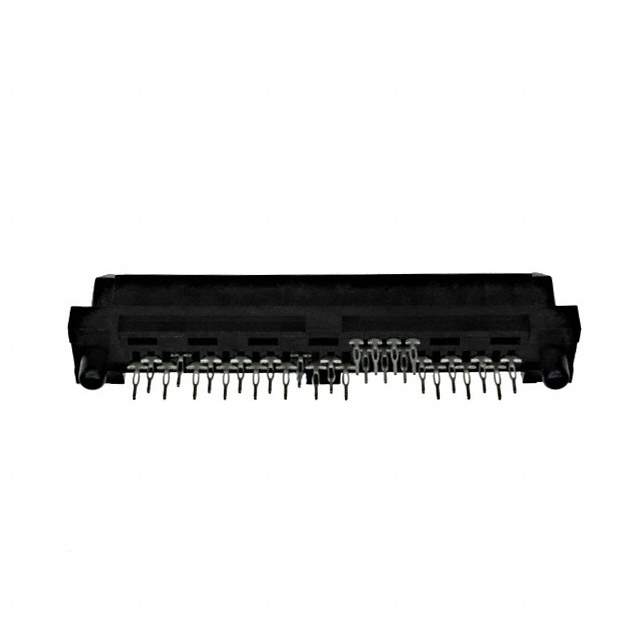

SBR-ST-29-P-ML Real Image
Same model may have multiple batches, images only for reference.

SBR-ST-29-P-ML

Part No SBR-ST-29-P-ML
Manufacturer 3M
Catalog Pluggable Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr 3M
Series SBR
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Other Names 00051111753095,3M5485,5111175309,51111753095,SBRST29PML,XE004219756
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294047-SBR-ST-29-P-ML
Ultra Librarian 3D Model Ultra Librarian SBR-ST-29-P-ML CAD Model

Description

The 1294047-SBR-ST-29-P-ML is a press-fit SAS receptacle connector from 3M's SBR series.

  • Positions: 29
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tray
  • Mounting Type: Through-Hole
  • ECCN: EAR99 compliant
  • MSL Level: 1
