Same model may have multiple batches, images only for reference.

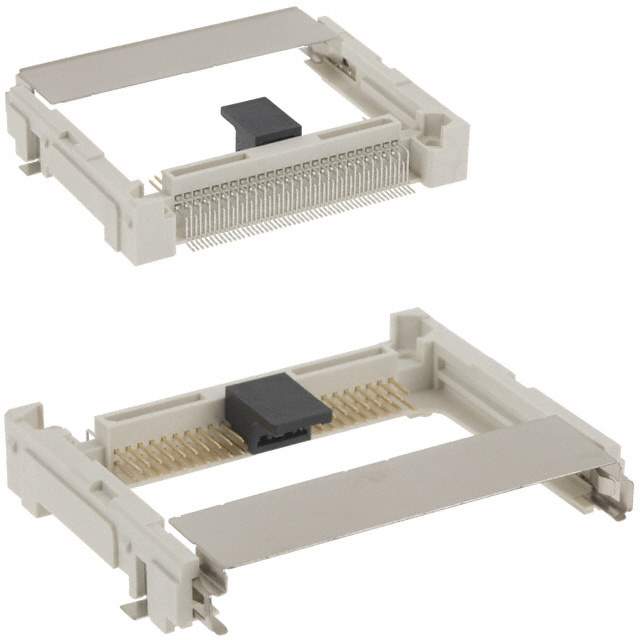

N7E50-M516RB-50 Real Image
Same model may have multiple batches, images only for reference.

N7E50-M516RB-50

Part No N7E50-M516RB-50
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD R/A SMD / 50 Position Card Connector CompactFlash® - Type I, II Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr 3M
Series 7E50
Package Box
Card Type CompactFlash® - Type I, II
Number of Positions 50
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Type Surface Mount, Right Angle
Features Board Guide, Card Guide
Height Above Board 0.327" (8.30mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number N7E50
Standard Package 270
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336692-N7E50-M516RB-50
Ultra Librarian 3D Model Ultra Librarian N7E50-M516RB-50 CAD Model

Description

The 1336692-N7E50-M516RB-50 is a 50-position PC card socket connector from the 7E50 series of memory connectors.

  • Card Type: CompactFlash - Type I, II
  • Voltage Rating: 1500V
  • Height Above Board: 0.327" (8.30mm)
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Box
  • Mounting Type: Surface Mount, Right Angle
  • Application: Communication and Computer Systems
