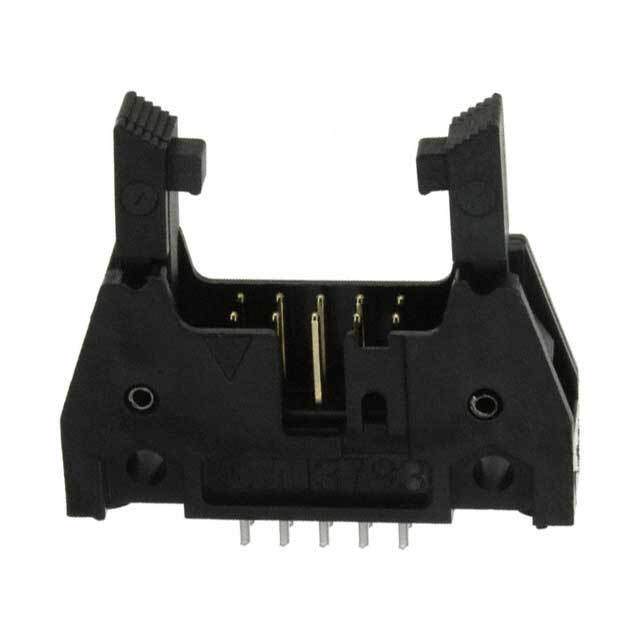

N3793-6302RB Real Image
Same model may have multiple batches, images only for reference.

N3793-6302RB

Part No N3793-6302RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3793
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 51111627488,80400031565,00051115264504,5111162748,N3793-6602RB,80001150889,XP700003567,05111162748,N3793-6602RB-ND,N37936302RB,MHS10N,7000005863,00051111627488
Standard Package 450
Win Source Part Number 1005526-N3793-6302RB
Ultra Librarian 3D Model Ultra Librarian N3793-6302RB CAD Model

Description

The 3000 series header connector from 3M has 10 male pin contacts in a 2-row configuration.

  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.100" (2.54mm)
  • Mounting: through hole
  • Design: shrouded 4 wall
  • Contact Material: copper alloy with a gold mating finish and a tin post finish
  • Current Rating: 1.75A
  • Operating Temperature: -55°C to 105°C
  • Packaging: bulk
  • Standard Package: 450
  • Overall Contact Length: 0.652" (16.56mm)
  • Insulation Height: 0.680" (17.27mm)
  • Post Contact Length: 0.112" (2.84mm)
