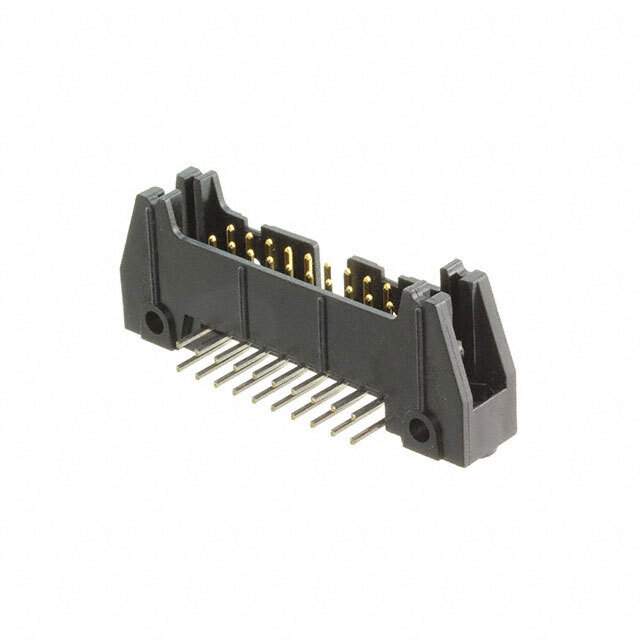

N3428-5002RB

Name: N3428-5002RB
Brand: 3M
SKU: 763348
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	N3428-5002RB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	PROTECT HEADER RT ANG 20 CONTACT
Datasheet	N3428-5002RB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	3M
Series	3000
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.112" (2.84mm)
Insulation Height	0.340" (8.64mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features	Keying Slot, Mounting Flange
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1.75A
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	763348-N3428-5002RB
Popularity	Medium
Supply and Demand Status	Balance
Family Name	3000
Introduction Date	January 07, 2005
ECCN	EAR99
Halogen Free	Unknown
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian N3428-5002RB CAD Model

Description

The 3M 763348-N3428-5002RB is a high-quality electronic component that is commonly used in various electronic devices.

Connector Type: Header
Number of Positions: 20
Connection Style: Board-to-Board, Cable
Market Popularity: Medium
Supply and Demand: Balance
