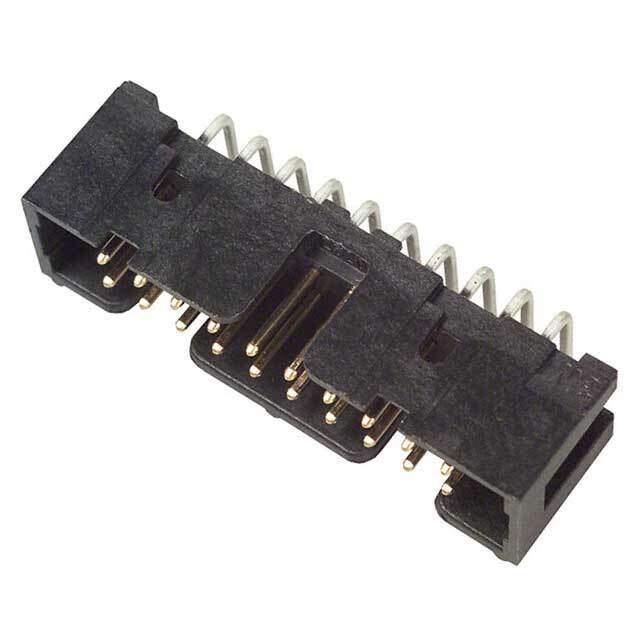

N2520-5002RB Real Image
Same model may have multiple batches, images only for reference.

N2520-5002RB

Part No N2520-5002RB
Manufacturer 3M
Catalog Circular Connectors - Housings
Description AMP-LATCH Series; 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header; Solder Term; 1A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Color Black
Connector Type Male Pin
Contact Gender Male
Contact Material Bronze, Gold, Nickel
Contact Mating Length 6.1722 mm
Contact Plating Gold
Contact Resistance 20 mΩ
Current Rating 2 A
Depth 12.44 mm
Flammability Rating UL94 V-0
Gender Male
Height 8.59 mm
Hole Diameter 890 µm
Housing Color Black
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Length 2.84 mm
Lead Pitch 2.54 mm
Length 32.72 mm
Mating Post Length 6.17 mm
Max Current Rating 1.75 A
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Contacts 20
Number of Pins 20
Number of Poles 20
Number of Positions 20
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.54 mm
Termination Solder
Voltage Rating (AC) 350 V
Working Voltage 350 V
Win Source Part Number 1005567-N2520-5002RB
Categories Circular Connectors - Housings
Manufacturer 3M
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian N2520-5002RB CAD Model

Description

The 1005567-N2520-5002RB connector from 3M is a male pin type connector with 20 positions and a pitch of 2.54 mm.

  • Color: Black
  • Length: 32.72 mm
  • Rows: 2
  • Row Spacing: 2.54 mm
  • Termination: Soldering
  • Contact Mating Length: 6.1722 mm
  • Contact Material: Bronze, Gold, Nickel
  • Contact Resistance: 20 mΩ
  • Current Rating: 2A
  • Voltage: 350 V
  • Housing Material: Polyester
  • Approval: UL approved
  • Type: Right-angle
  • Contact Plating: Gold
  • Operating Temperature: -55°C to 105°C
