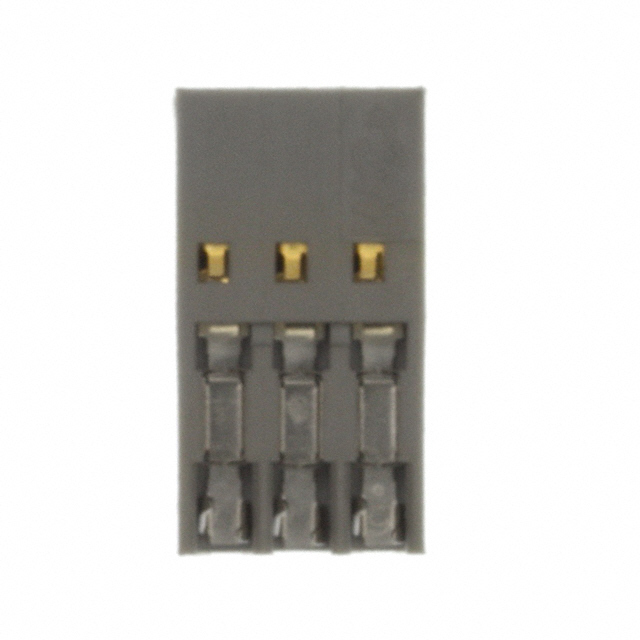

Same model may have multiple batches, images only for reference.
CHG-1009-001010-KEP 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CHG-1009-001010-KEP

Part No CHG-1009-001010-KEP
Manufacturer 3M
Catalog Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RCPT 9POS IDC 22-24AWG GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 22-24 AWG
Features Closed End
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Gray
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1627636-CHG-1009-001010-KEP
Ultra Librarian 3D Model Ultra Librarian CHG-1009-001010-KEP CAD Model
