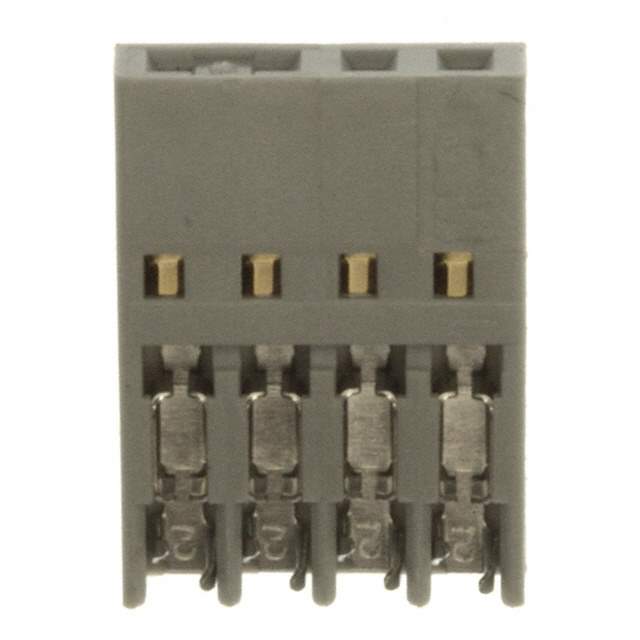

Same model may have multiple batches, images only for reference.

CHG-1004-001010-KEP

Name: CHG-1004-001010-KEP
Brand: 3M
SKU: 1034086
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CHG-1004-001010-KEP
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS IDC 22-24AWG GOLD / 4 Position Rectangular Receptacle Connector IDC Gold 22-24 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	3M
Series	CHG
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	4
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	22-24 AWG
Features	Closed End
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Gray
Base Product Number	CHG
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	80610192645,54007375135,CHG1004001010KEP,CHG-1004-001010-KEP-ND,05400737513,7010348479,3M9069,5400737513,7100262287,XP700009085,00054007375135
Standard Package	100
Win Source Part Number	1034086-CHG-1004-001010-KEP
Ultra Librarian 3D Model	Ultra Librarian CHG-1004-001010-KEP CAD Model

Alternative Products

Description

This electronic component is a rectangular connector with a Win Source Part Number of 1034086-CHG-1004-001010-KEP manufactured by vendor unspecified.

Connector Type: Female Socket Receptacle
Positions: 4
Pitch: 0.100" (2.54mm)
Color: Gray
Design: Closed End
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Wire Gauge: 22-24 AWG
Cable Type: Discrete or Ribbon Cable
Cable Termination: IDC
Category: Connectors, Interconnects
Series: CHG
Standard Package: 100
Mounting: Free Hanging (In-Line)
