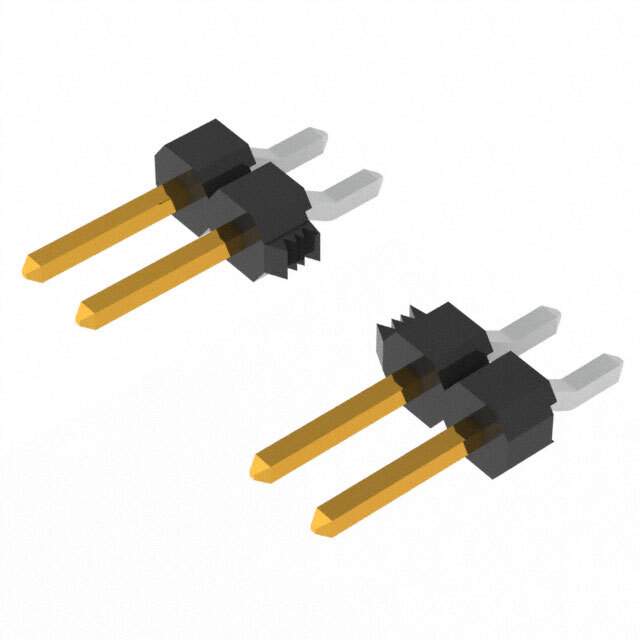

Same model may have multiple batches, images only for reference.

951107-4620-AR-PR

Name: 951107-4620-AR-PR
Brand: 3M
SKU: 1332873
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	951107-4620-AR-PR
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 7POS 2MM / Connector Header Surface Mount, Right Angle 7 position 0.079" (2.00mm)
Datasheet	951107-4620-AR-PR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	3M
Packaging	Reel - TR
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.175" (4.45mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-25°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	951107
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	3M9356CT,9511074620ARPR,3M9356TR,5111106684,51111066843,DE500005421,3M9356DKR
Standard Package	500
Win Source Part Number	1332873-951107-4620-AR-PR
Ultra Librarian 3D Model	Ultra Librarian 951107-4620-AR-PR CAD Model

Description

This 3M male pin header connector is a high-quality copper alloy contact material connector that comes in a black color.

Mounting Type: Surface Mount, Right-Angle
Pitch-Mating: 0.079" (2.00mm)
Contact Plating: Gold
Contact Finish Thickness: Flash
Insulation Material: Thermoplastic
Insulation Color: Black
Temperature Range: -25°C to 105°C
RoHS Compliant: Yes
Supply and Demand Status: Limited
