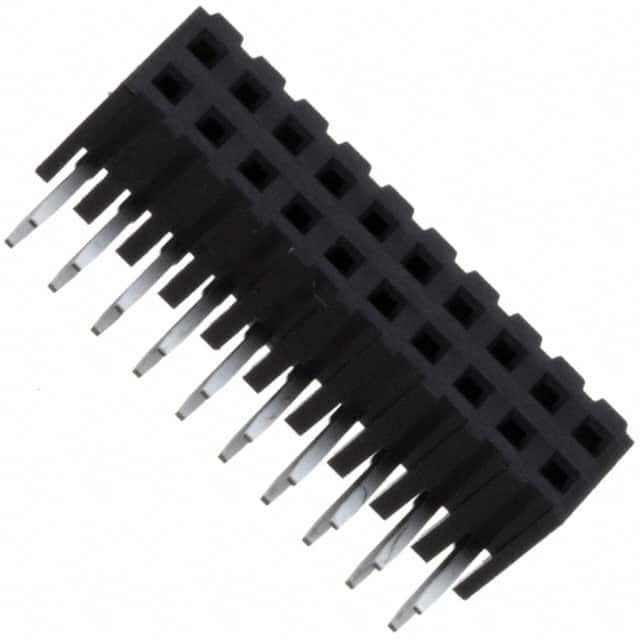

Same model may have multiple batches, images only for reference.

950420-5002-AR

Name: 950420-5002-AR
Brand: 3M
SKU: 854228
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	950420-5002-AR
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 20P 0.079 GOLD PCB R/A
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	3M
Series	950
Package	Tube
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.191" (4.85mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	1A
Voltage Rating	1000VDC
Insulation Material	Thermoplastic
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	40.0µin (1.02µm)
Base Product Number	950420
Standard Package	300 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854228-950420-5002-AR
Ultra Librarian 3D Model	Ultra Librarian 950420-5002-AR CAD Model

Description

The 854228-950420-5002-AR is a receptacle connector from the 950 series by 3M.

Positions: 20
Pitch: 0.079 inches (2.00mm)
Termination: Solder
Fastening Type: Push-pull
Contact Material: Copper Alloy
Contact Finish: Gold
Contact Finish Thickness: Flash
Insulation Material: Thermoplastic
Insulation Color: Black
Mounting: Through-Hole, Right Angle
Application: Board to Board
Temperature Range: -40°C to 105°C
