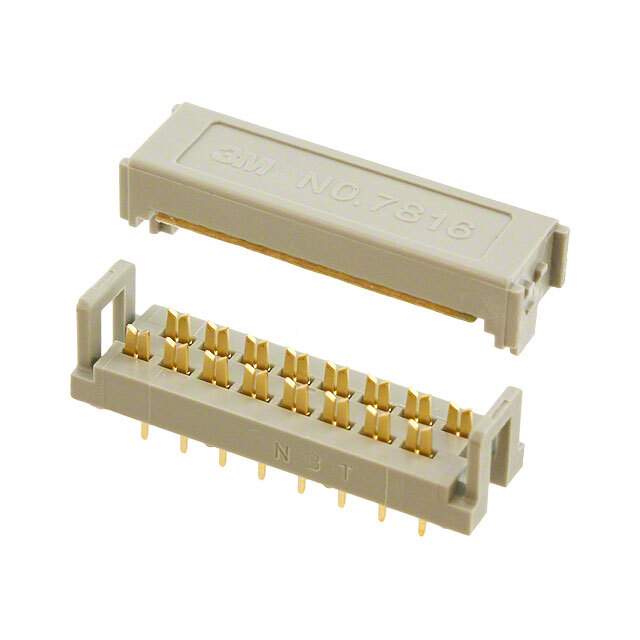

7816-0000PR Real Image
Same model may have multiple batches, images only for reference.

7816-0000PR

Part No 7816-0000PR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN DIP HDR IDC 16P VERT / 16 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Board In, Direct Wire to Board
Mfr 3M
Series 78XX
Package Tray
Connector Type Ribbon Cable, DIP Header
Number of Positions 16
Cable Pitch 0.050" (1.27mm)
Board-Side Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Through Hole
Cable Termination IDC
Wire Gauge 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid
Features Feed Through
Contact Finish Gold
Contact Finish Thickness Flash
Color Gray
Number of Positions Loaded All
Base Product Number 7816
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1350791-7816-0000PR
Ultra Librarian 3D Model Ultra Librarian 7816-0000PR CAD Model

Description

The 3M 78XX series board in connector is designed for use in direct wire to board rectangular connectors.

  • Positions: 16
  • Color: Gray
  • Feature: Feed-Through
  • Connector Type: Ribbon Cable, DIP Header
  • All Positions Loaded: Yes
  • Number of Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Termination: IDC
  • Cable Pitch: 0.050" (1.27mm)
  • Board-Side Pitch: 0.100" (2.54mm)
  • Package: Tray
  • Wire Gauge: 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid
  • Operating Temperature: -55°C to 105°C
