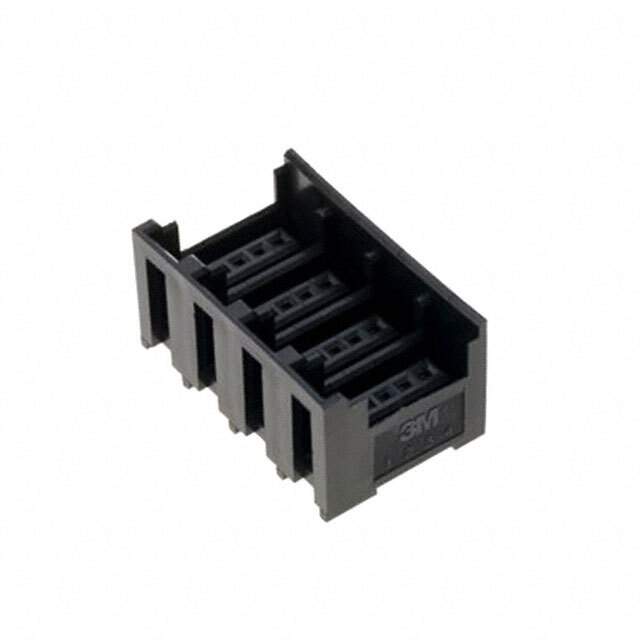

37208-62B3-004 PL Real Image
Same model may have multiple batches, images only for reference.

37208-62B3-004 PL

Part No 37208-62B3-004 PL
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.079 GOLD PCB / 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series Mini-Clamp I, 372
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.256" (6.50mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.512" (13.00mm)
Contact Length - Post 0.102" (2.60mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 3A
Voltage Rating 32V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Base Product Number 37208
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340310-37208-62B3-004 PL
Ultra Librarian 3D Model Ultra Librarian 37208-62B3-004 PL CAD Model

Description

This 372 series receptacle connector is a female socket type connector with 8 positions loaded in two rows.

  • Positions: 8
  • Number of Rows: 2
  • Feature: board guide
  • Contact Material: copper alloy
  • Contact Finish-Mating: gold with a thickness of 8.00µin (0.203µm)
  • Connection Type: board to cable/wire
  • Mating Pitch: 0.079" (2.00mm)
  • Shrouding: 4 walls
  • Insulation Height: 0.512" (13.00mm)
  • Current Rating: 3A
  • Applications: automotive, industrial, lighting and medical
