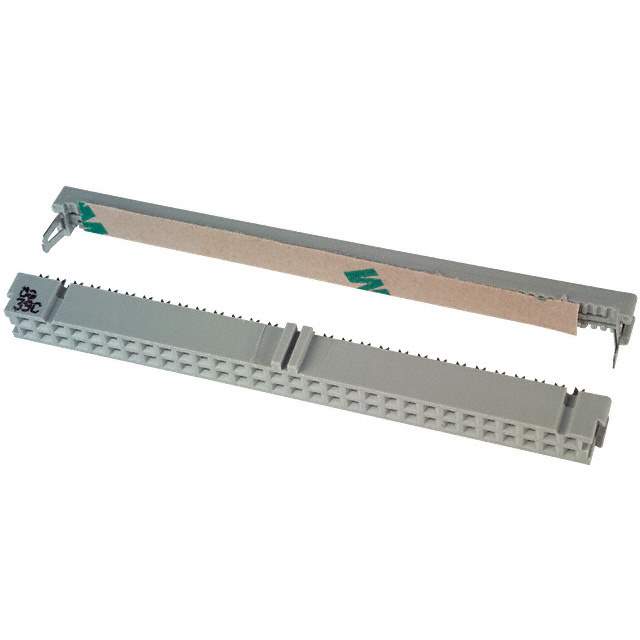

3425-6600 Real Image
Same model may have multiple batches, images only for reference.

3425-6600

Part No 3425-6600
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 50P IDC 26-28AWG GOLD / 50 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG, Stranded or Solid
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series 3000
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 50
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG, Stranded or Solid
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Gray
Base Product Number 3425
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XP700004870,34256600,54007336396,5400733639,7000057801,80610120935,MKC50K,80-6101-2093-5
Standard Package 300
Win Source Part Number 1039319-3425-6600
Ultra Librarian 3D Model Ultra Librarian 3425-6600 CAD Model

Description

The 3M 1039319-3425-6600 is a rectangular connector that is used in electronic devices. It has 50 positions and a pitch of 0.100 inches.

  • Positions: 50
  • Pitch: 0.100 inches
  • Mating Connector: Female Socket
  • Contact Finish: Gold
  • Connector Type: Rectangular
  • Manufacturer: 3M
