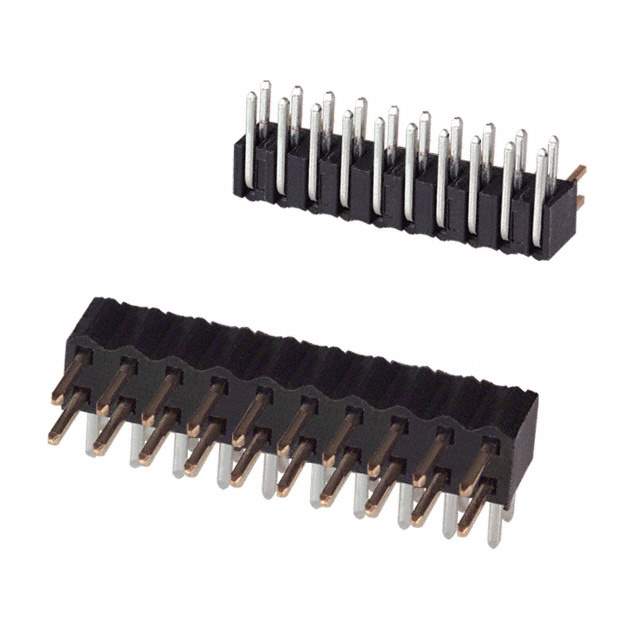

151220-7422-RB

Part No 151220-7422-RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2MM / Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 1512
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.152" (3.86mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP) , Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number 151220
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340316-151220-7422-RB
Ultra Librarian 3D Model Ultra Librarian 151220-7422-RB CAD Model

Description

The 1340316-151220-7422-RB is a 20-position header connector from the 1512 series of rectangular connectors.

  • Positions: 20
  • Series: 1512
  • Contact Type: Male Pins
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.079" (2.00mm)
  • Loaded Positions: All
  • Contact Finish (Mating): Gold with thickness of 30.0µin (0.76µm)
  • Contact Finish (Post): Tin with thickness of 200.0µin (5.08µm)
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass Filled
  • Insulation Color: Black
  • Flammability Rating: UL94 V-0
  • Standard Package Quantity: 400
  • MSL Level: Level 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: 3M
