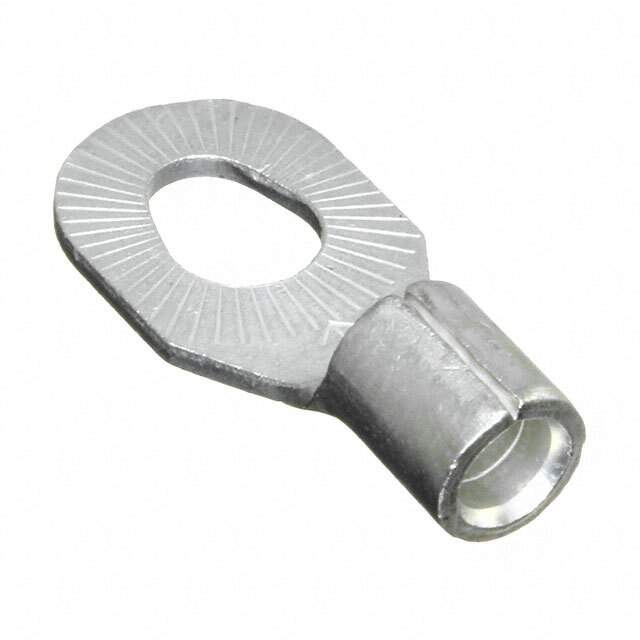

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr 3M
Package Bulk
Terminal Type Multi-Stud
Stud/Tab Size 6, 8, 10 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.390" (9.91mm)
Length - Overall 0.890" (22.61mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features Butted Seam
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 3M157205,00054007296461,13-610-ND,7100163829,80601394275,05400729646
Standard Package 1,000
Win Source Part Number 1111194-13-610
Ultra Librarian 3D Model Ultra Librarian 13-610 CAD Model

Description

The 13-610-ND from 3M is a multi-stud terminal type connector that features a butted seam and crimp termination.

  • Terminal Type: Multi-Stud
  • Seam Type: Butted
  • Termination: Crimp
  • Insulation: Non-Insulated
  • Thickness: 0.040 inches
  • Wire Gauge: 10-12 AWG
  • Stud/Tab Size: 6, 8, 10 stud
  • Package Quantity: 1,000 pieces
  • Mounting: Free Hanging (In-Line)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
