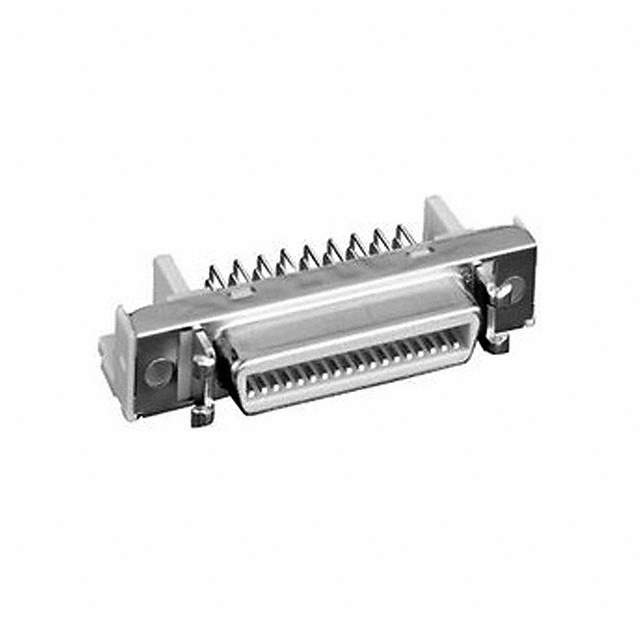

10236-55G3PL Real Image
Same model may have multiple batches, images only for reference.

10236-55G3PL

Part No 10236-55G3PL
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 36POS R/A SOLDER / 36 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr 3M
Series 102, Mini D Ribbon (MDR)
Package Bulk
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 36
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 10236
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349892-10236-55G3PL
Ultra Librarian 3D Model Ultra Librarian 10236-55G3PL CAD Model

Description

The 3M 10236 series connector is a receptacle designed for use in D-sub, D-shaped connectors, and Centronics connectors. It has 36 positions and features board lock and shielding.

  • Positions: 36
  • Connector Type: Receptacle
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Bulk
  • Flange Feature: Housing/Shell (M2.6)
  • Mounting Type: Panel, Through Hole, Right Angle
  • Temperature Range: -55°C to 105°C
