Same model may have multiple batches, images only for reference.

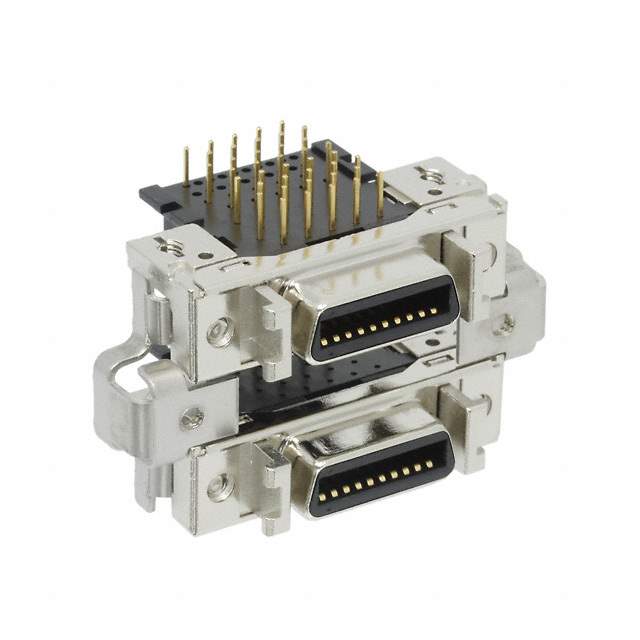

10220-M218PE Real Image
Same model may have multiple batches, images only for reference.

10220-M218PE

Part No 10220-M218PE
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN STCK RCPT 20/20P R/A SOLDER / 20, 20 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr 3M
Series 102, Mini D Ribbon (MDR)
Package Bulk
Connector Style Outer Shroud Contacts
Connector Type Stacked, 2 Receptacles
Number of Positions 20, 20
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 10220
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341447-10220-M218PE
Ultra Librarian 3D Model Ultra Librarian 10220-M218PE CAD Model

Description

The 102 series stacked receptacles from 3M are D-sub, D-shaped connectors with 20 positions.

  • Connector Type: D-Sub, D-Shaped
  • Positions: 20
  • Contact Type: Stacked, 2 Receptacles
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Connector Style: Outer Shroud Contacts
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Base Product Number: 10220
