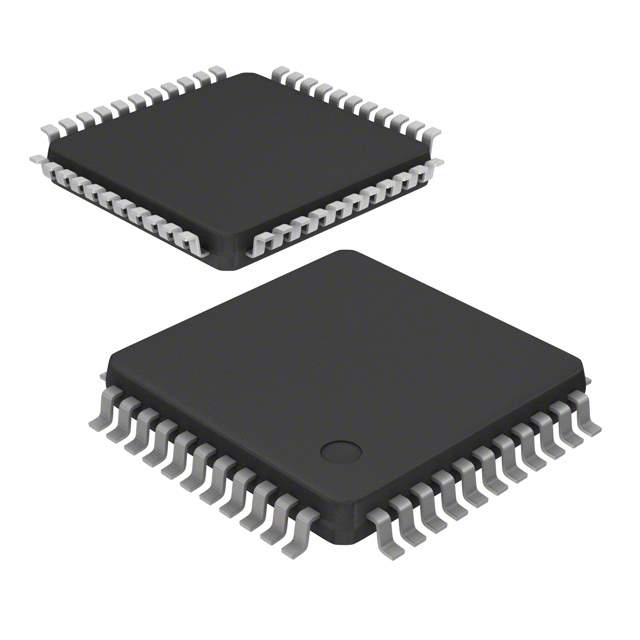

Z8F1601AN020SC Real Image
Same model may have multiple batches, images only for reference.

Z8F1601AN020SC

Part No Z8F1601AN020SC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description Z8 Encore Microcontrollers with Flash Memory and 10-Bit A/D Converter
Datasheet
Z8F1601AN020SC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Encore!
Packaging Tray
Part Status Obsolete(EOL)
Core Processor eZ8
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 31
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 2K x 8
Supply Voltage 3 V ~ 3.6 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Package 44-LQFP
Manufacturer Package 44-QFP (10x10)
RoHS State Request Verification
Win Source Part Number 1282828-Z8F1601AN020SC
Manufacturer Homepage www.zilog.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 160
Family Name Z8F1601
Introduction Date December 16, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian Z8F1601AN020SC CAD Model

Description

The Zilog Z8F1601AN020SC is an 8-bit microcontroller from the Encore! series.

  • Manufacturer: Zilog
  • Series: Encore!
  • Package: 44-LQFP
  • Speed: 20MHz
  • I/O Pins: 31
  • Peripherals: Brown-out detect/reset, DMA, POR, PWM, and WDT
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 2K x 8
  • Data Converters: A/D 8x10b
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Package Contains: 160 units
