Same model may have multiple batches, images only for reference.

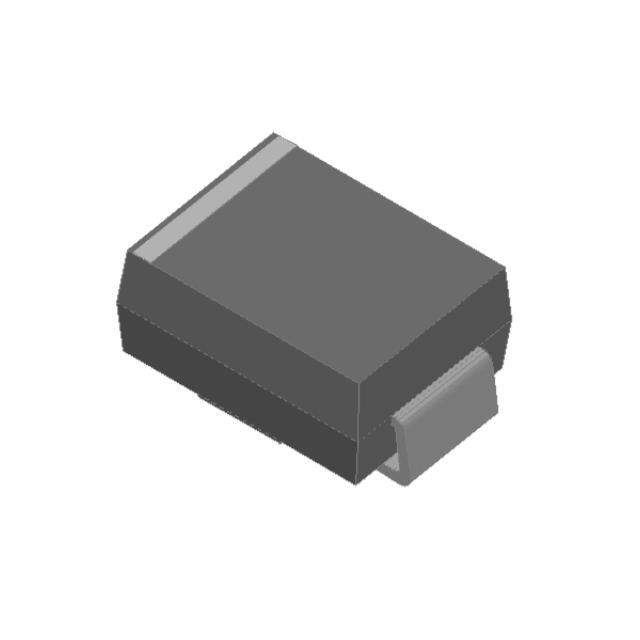

GS2B Real Image
Same model may have multiple batches, images only for reference.

GS2B

Part No GS2B
Manufacturer Yangzhou yangjie electronic co., ltd
Catalog Diodes, Rectifiers - Single
Description Diodes - Rectifiers - Single SMB / Diode 100 V 2A Surface Mount DO-214AC (HSMA)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr Yangzhou yangjie electronic co., ltd
Series -
Package Tape & Reel (TR)
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Capacitance @ Vr, F 20pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (HSMA)
Operating Temperature - Junction -55°C ~ 150°C
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 3,000 pcs
Win Source Part Number 1382188-GS2B
Ultra Librarian 3D Model Ultra Librarian GS2B CAD Model

Description

The GS2B is a standard recovery diode rectifier manufactured by Yangzhou yangjie electronic co., ltd.

  • Speed: Greater than 500ns
  • Current Rating: 2A
  • Maximum Reverse Voltage: 100V
  • Forward Voltage Drop: 1.1V @ 2A
  • Reverse Leakage Current: 10 µA @ 100V
  • Capacitance: 20pF @ 4V, 1MHz
  • Mounting Type: Surface Mount
  • Package: DO-214AC (SMA)
