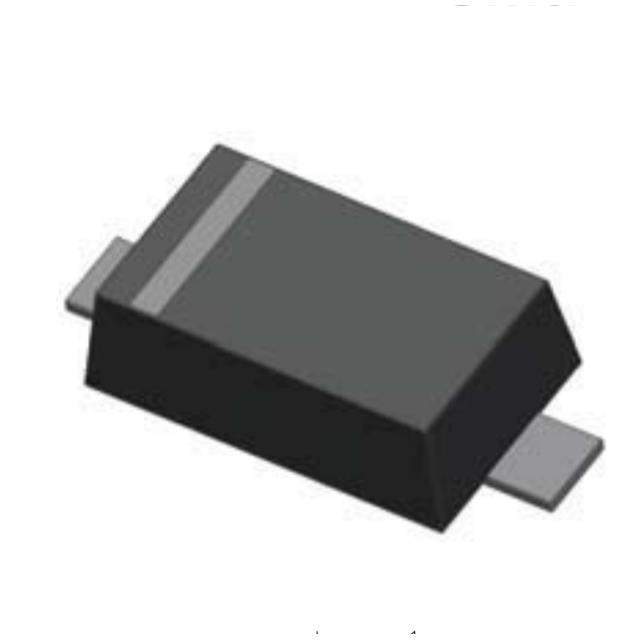

BZX584B9V1

Part No BZX584B9V1
Manufacturer Yangzhou yangjie electronic co., ltd
Catalog Diodes - Zener - Single
Description Diodes - Rectifiers - Single SOD / Zener Diode 9.1 V 150 mW ±2% Surface Mount SOD-523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Zener>Single Zener Diodes
Mfr Yangzhou yangjie electronic co., ltd
Series -
Package Tape & Reel (TR)
Voltage - Zener (Nom) (Vz) 9.1 V
Tolerance ±2%
Power - Max 150 mW
Impedance (Max) (Zzt) 15 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 6 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 8,000 pcs
Win Source Part Number 1381661-BZX584B9V1
Ultra Librarian 3D Model Ultra Librarian BZX584B9V1 CAD Model

Description

The BZX584B9V1 is a single zener diode designed for discrete semiconductor products.

  • Zener Voltage: 9.1V with a tolerance of ±2%
  • Power Rating: 150mW
  • Forward Voltage: 900mV @ 10mA
  • Mounting Type: Surface mountable
  • Manufacturer: Yangzhou yangjie electronic co., ltd
