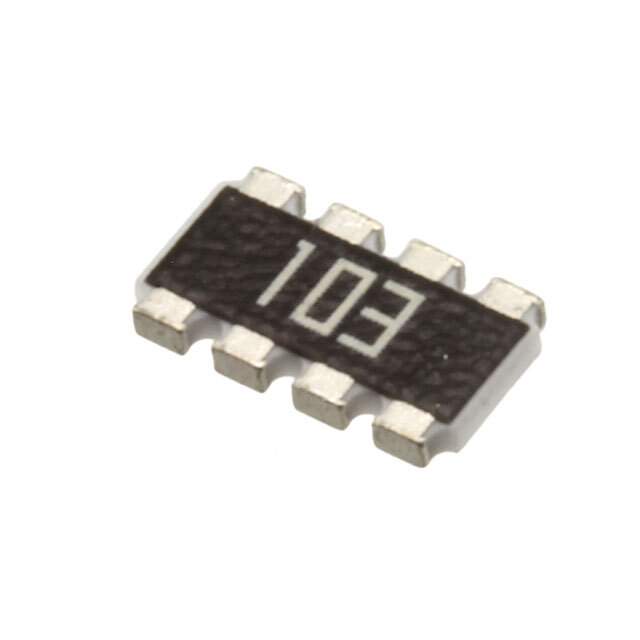

The YC324-JK-0710RL is a thick film chip resistor manufactured by Yageo, a leading global provider of passive components. This resistor is designed for general purpose applications requiring stable and reliable resistance in a compact form factor.

Applications

• General purpose circuits
• Current limiting
• Voltage division
• Pull-up/pull-down resistors
• Consumer electronics

Features

• Thick film technology
• Surface mount device (SMD)
• Compact size (0603 package)
• High stability
• Wide resistance range
• RoHS compliant

Benefits

• Reliable performance: Thick film technology ensures stable and consistent resistance over a wide range of operating conditions.
• Easy assembly: Surface mount design simplifies PCB assembly and reduces manufacturing costs.
• Space saving: Compact size allows for high-density circuit designs.
• Environmentally friendly: RoHS compliance ensures that the resistor meets environmental regulations.
• Versatile: Wide resistance range makes it suitable for a variety of applications.

Additional Details

The YC324-JK-0710RL is constructed using a thick film resistive element, which is deposited on a ceramic substrate. The resistor is then trimmed to the desired resistance value and protected with a layer of epoxy. The resistor is available in a standard 0603 surface mount package, which is compatible with automated assembly equipment. The resistor is also RoHS compliant, meaning that it does not contain any hazardous substances.

Yageo is a reputable manufacturer of passive components, and the YC324-JK-0710RL is a high-quality resistor that is designed for reliable performance. This resistor is a good choice for general purpose applications requiring stable and reliable resistance in a compact form factor. Its small size and ease of assembly make it an ideal component for modern electronic devices.
