Same model may have multiple batches, images only for reference.

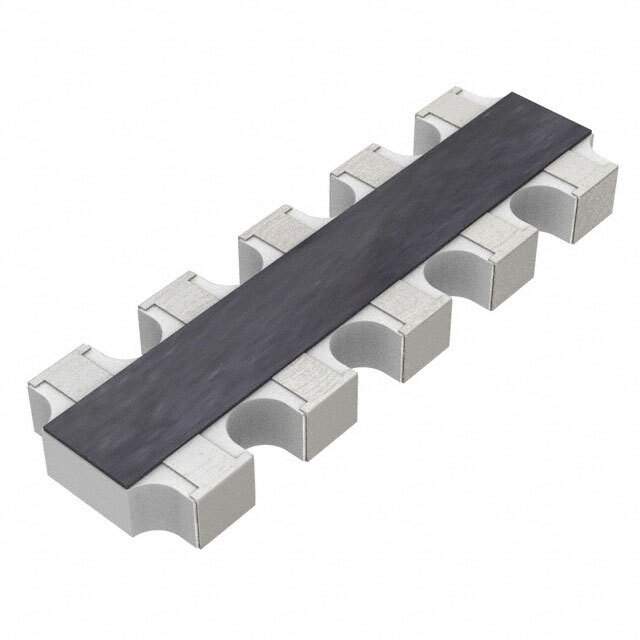

YC158TJR-072K7 Real Image
Same model may have multiple batches, images only for reference.

YC158TJR-072K7

Part No YC158TJR-072K7
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 2.7K OHM 1206
Datasheet
YC158TJR-072K7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Circuit Type Bussed
Resistance (Ohms) 2.7k
Tolerance ±5%
Number of Resistors 8
Number of Pins 10
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 155°C
Applications DDRAM, SDRAM
Mounting SMD (SMT)
Height - Seated (Max) 0.028" (0.70mm)
Win Source Part Number 214657-YC158TJR-072K7
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian YC158TJR-072K7 CAD Model

Description

The YC158TJR-072K7 is a high-quality resistor manufactured by Yageo.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
