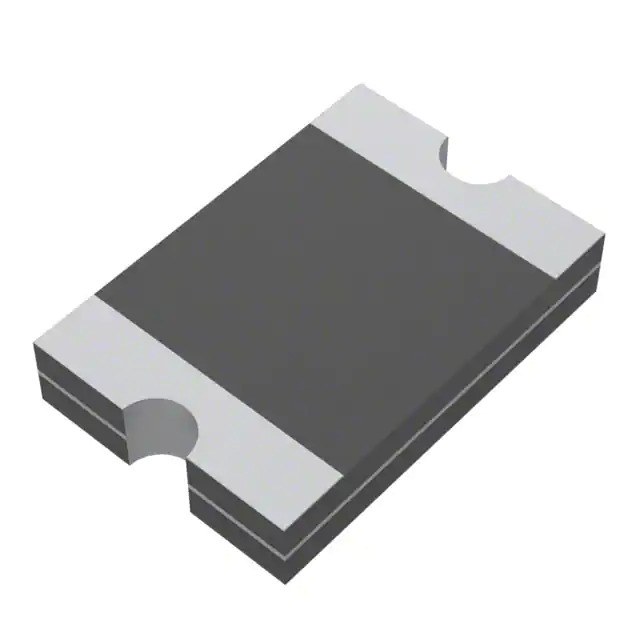

SMD1812B075TF Yageo
Same model may have multiple batches, images only for reference.

SMD1812B075TF

Part No SMD1812B075TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1812, 13.2V 0.75A, REEL / Polymeric PTC Resettable Fuse 13.2V 750 mA Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B075TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 13.2V
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Current - Max 100 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 100 mOhms
Resistance - Post Trip (R1) (Max) 450 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.061" (1.55mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361663-SMD1812B075TF
Ultra Librarian 3D Model Ultra Librarian SMD1812B075TF CAD Model

Description

The SMD1812B075TF is a PTC resettable fuse from YAGEO's SMD1812 series.

  • Component Type: PTC Resettable Fuse
  • Maximum Current: 100A
  • Maximum Voltage: 13.2V
  • Trip Current: 1.5A
  • Time to Trip: 200ms
  • Resistance (Initial): 100mOhms
  • Resistance (Post-Trip): 450mOhms
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Size: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • ECCN: EAR99
  • HTSUS: 8533.40.8070
