Same model may have multiple batches, images only for reference.

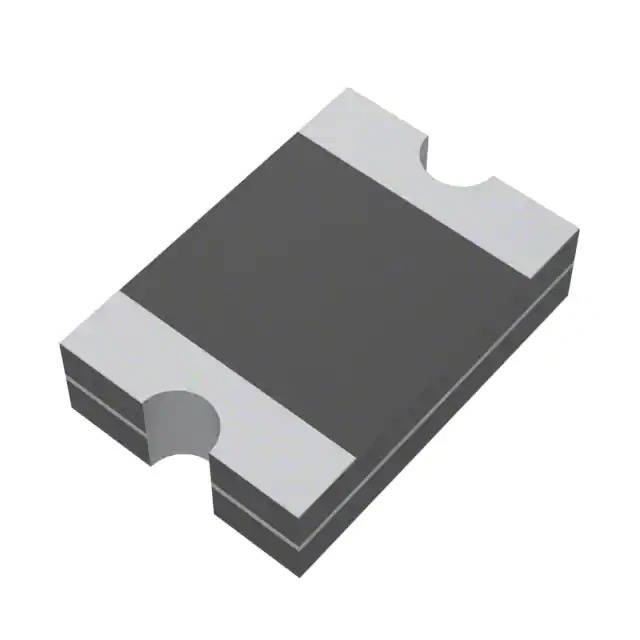

SMD1210B175TF Yageo
Same model may have multiple batches, images only for reference.

SMD1210B175TF

Part No SMD1210B175TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 6V 1.75 A Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B175TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1210
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 1.75 A
Current - Trip (It) 3.5 A
Current - Max 100 A
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 80 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) -
Thickness (Max) 0.063" (1.60mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361761-SMD1210B175TF
Ultra Librarian 3D Model Ultra Librarian SMD1210B175TF CAD Model

Description

The YAGEO SMD1210B175TF PTC Resettable Fuse is a polymeric circuit protection component manufactured by YAGEO.

  • Temperature Range: -40°C to 85°C
  • Maximum Current: 100A
  • Maximum Voltage: 6V
  • Current Hold: 1.75A
  • Current Trip: 3.5A
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Thickness: 0.063" (1.60mm)
  • ECCN: EAR99
  • Approvals: cUL, TUV, UL
  • Product Status: Active
