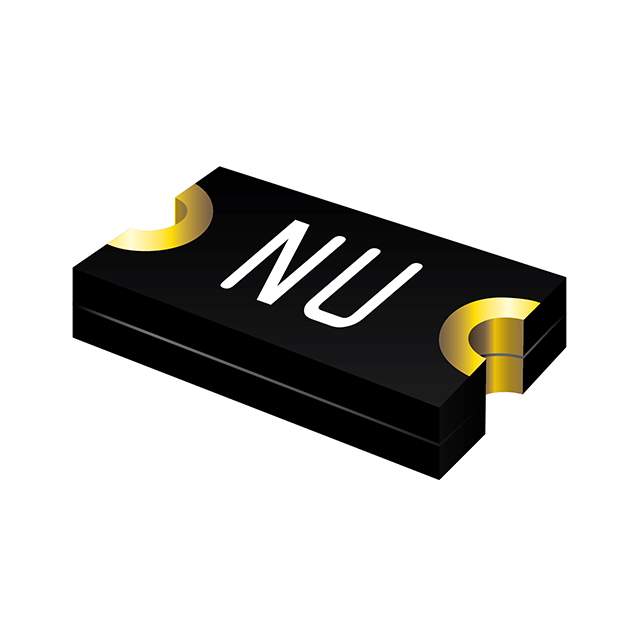

MF-NSML190-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSML190-2

Part No MF-NSML190-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 1.9A 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 1.9A
Current - Trip (It) 4.9A
Time to Trip 1s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Maximum) 28 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.063" W (3.25mm x 1.60mm)
Thickness (Maximum) 0.024" (0.60mm)
Approvals cURus, TUV
Part Number Series MF-NSML
Manufacturer Pack Quantity 5,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803733-MF-NSML190-2
Ultra Librarian 3D Model Ultra Librarian MF-NSML190-2 CAD Model

Description

The Bourns Inc. MF-NSML190-2 is a polymeric surface mount fuse.

  • Maximum Voltage: 6V
  • Maximum Current: 50A
  • Trip Current: 4.9A
  • Time to Trip: 1s
  • Resistance: 5 mOhms
  • Post Trip Resistance: 28 mOhms
  • Package Type: 1206 (3216 Metric), Concave
  • Mounting Style: SMD
  • Approvals: cURus, TUV
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 2A (4 Weeks)
