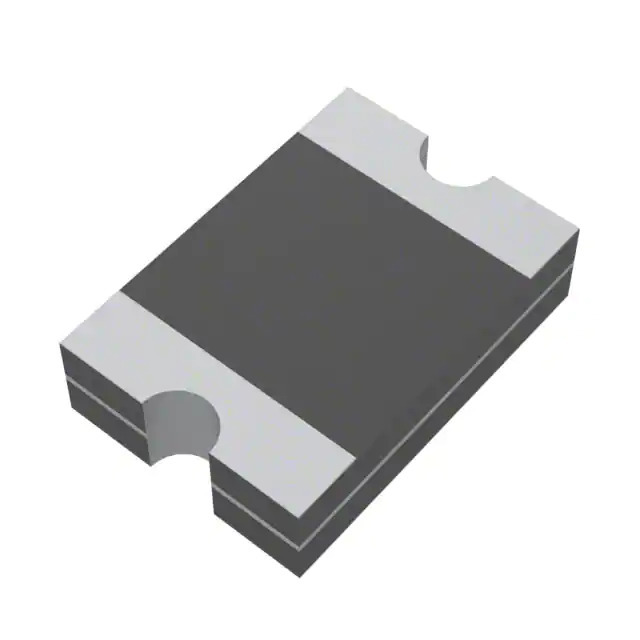

Same model may have multiple batches, images only for reference.
SMD1210B005TF Yageo
Same model may have multiple batches, images only for reference.

SMD1210B005TF

Part No SMD1210B005TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1210, 30V 0.05A, REEL 7 / Polymeric PTC Resettable Fuse 30V 50 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B005TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1210
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 150 mA
Current - Max 10 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 3.6 Ohms
Resistance - Post Trip (R1) (Max) 50 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) -
Thickness (Max) 0.049" (1.25mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361626-SMD1210B005TF
Ultra Librarian 3D Model Ultra Librarian SMD1210B005TF CAD Model

Description

The 1361626-SMD1210B005TF is a polymeric PTC resettable fuse from YAGEO's SMD1210 series.

  • Function: circuit protection
  • Maximum Current: 10A
  • Maximum Voltage: 30V
  • Trip Current: 150mA
  • Time to Trip: 1.5s
  • Package: SMD1210
  • Mounting Type: surface mount
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Certifications: cUL, TUV, and UL
  • Size: 0.127" L x 0.102" W (3.22mm x 2.58mm)
