SJD12C22L01 Yageo
Same model may have multiple batches, images only for reference.

SJD12C22L01

Part No SJD12C22L01
Manufacturer Yageo
Catalog TVS - Diodes

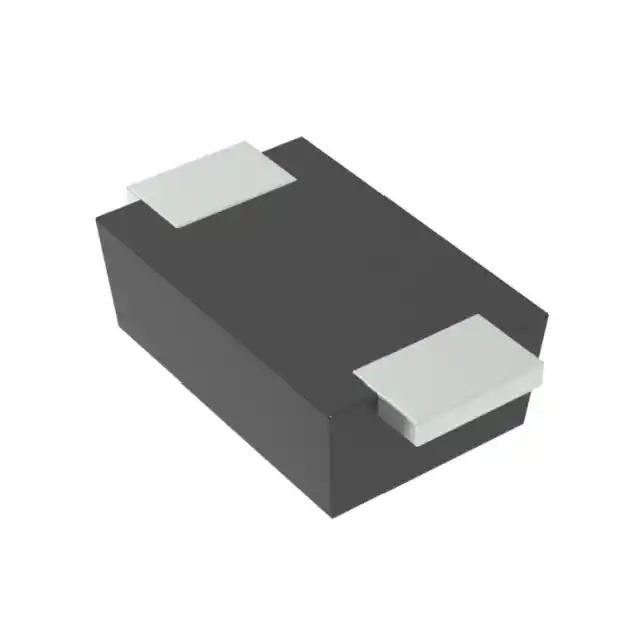

Description TVS ESD, SOD-123S, 22V, 35.5V, R / 35.5V Clamp 5.7A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet
SJD12C22L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SJD12A(C)XXXL01
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 5.7A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AA
Supplier Device Package SOD-123S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362420-SJD12C22L01
Ultra Librarian 3D Model Ultra Librarian SJD12C22L01 CAD Model

Description

The YAGEO SJD12C22L01 is a zener diode transient voltage suppressor (TVS) designed for circuit protection manufactured by YAGEO.

  • Temperature Range: -55°C to 150°C
  • Voltage Rating: 22V
  • Breakdown Voltage: 24.4V
  • Channel: Bidirectional
  • Peak Pulse Current: 5.7A
  • Mounting Type: Surface Mount
  • Package: DO-219AA
  • Application: General Purpose
  • HTSUS: 8541.10.0080
