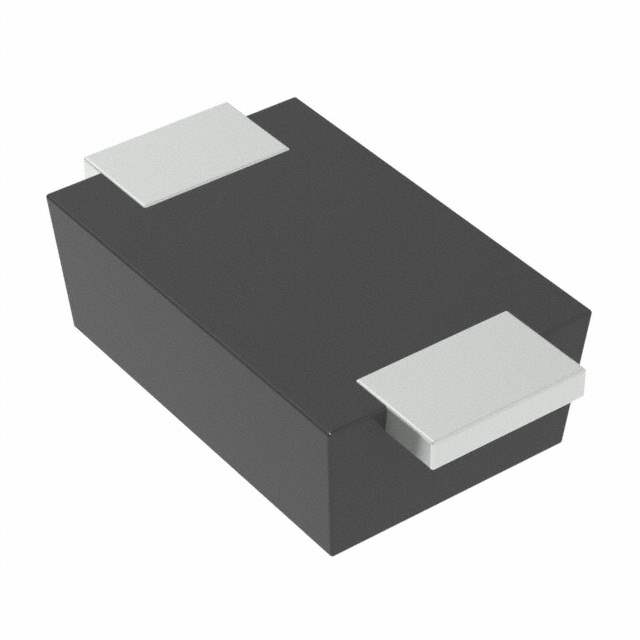

SJD12A48L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12A48L01

Part No SJD12A48L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ARRAY ESD, SOD-123, 48V 77.4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SJD12A48L01
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 48V
Voltage - Breakdown (Min) 53.3V
Voltage - Clamping (Max) @ Ipp 77.4V
Current - Peak Pulse (10/1000µs) 2.6A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12A
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1121028-SJD12A48L01
Ultra Librarian 3D Model Ultra Librarian SJD12A48L01 CAD Model

Description

The 1121028-SJD12A48L01 is a TVS diode from YAGEO's SJD12A48L01 series. It is a unidirectional zener diode designed for general-purpose applications.

  • Series: SJD12A48L01
  • Type: Zener Diode
  • Polarity: Unidirectional
  • Application: General Purpose
  • Reverse Standoff Voltage: 48V
  • Breakdown Voltage: 53.3V
  • Clamping Voltage: 77.4V @ 1kW Peak Pulse Power
  • Current Rating: 2.6A (10/1000µs Peak Pulse)
  • Package: DO-219AA
  • Mounting: Surface Mount
  • Operating Temperature: -55°C to 150°C
  • Status: Active
  • Manufacturer: YAGEO
  • Application: Power Line Protection
