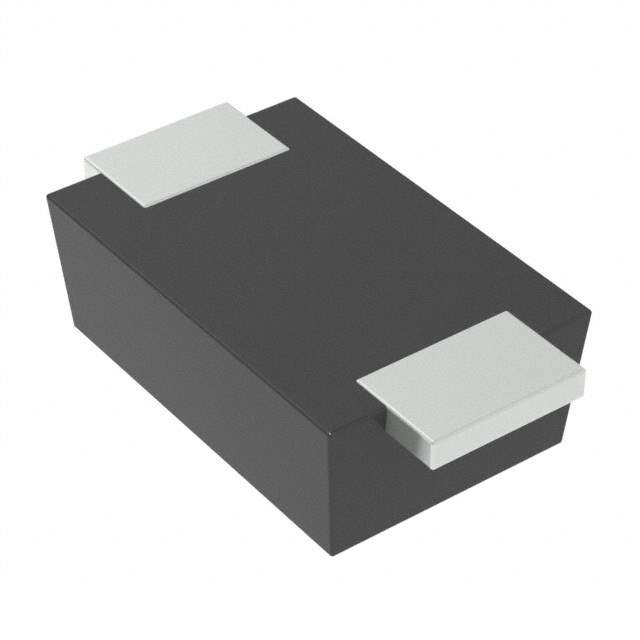

The SJD12A33L01 is a transient voltage suppressor (TVS) diode manufactured by Yageo. It is designed to protect sensitive electronic components from voltage transients induced by lightning, electrostatic discharge (ESD), and inductive load switching. This TVS diode is commonly used in a wide range of applications to enhance the reliability and longevity of electronic circuits.

Applications

• Automotive electronics
• Telecommunications equipment
• Industrial control systems
• Consumer electronics
• Power supplies

Features

• Package Type: DO-214AA (SMB)
• Polarity: Unidirectional
• Stand-off Voltage: 33V
• Breakdown Voltage: Typically 36.7V
• Clamping Voltage: Typically 53.3V
• Peak Pulse Power Dissipation: 600W
• Operating Temperature Range: -55°C to +150°C

Benefits

• Overvoltage Protection: Provides effective protection against transient voltage events, preventing damage to sensitive components.
• Fast Response Time: Reacts quickly to transient voltages, ensuring rapid clamping and protection.
• High Surge Capability: Can withstand high surge currents without degradation.
• Compact Size: The SMB package offers a small footprint for space-constrained applications.
• High Reliability: Designed for long-term reliability in harsh environments.

Additional Details

The SJD12A33L01 TVS diode operates by clamping the voltage to a safe level when a transient event occurs. When the voltage exceeds the breakdown voltage, the diode conducts, diverting the excess current away from the protected components. The unidirectional configuration allows it to protect against positive voltage transients. The SMB (DO-214AA) package is designed for surface mount assembly, facilitating automated manufacturing processes. It is compliant with RoHS standards, ensuring environmental friendliness. Proper board layout and grounding techniques are crucial for optimal performance. This device is a key component in ensuring the robustness and reliability of electronic systems in various industries.
