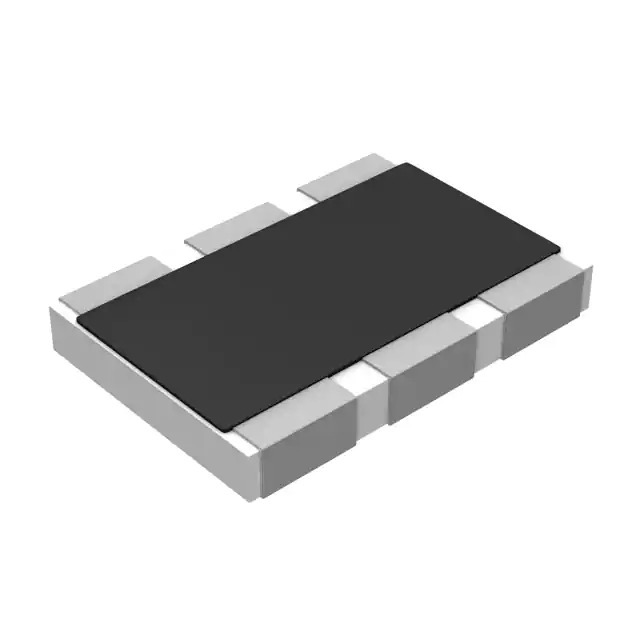

Same model may have multiple batches, images only for reference.
RL1218JK-070R16L Yageo
Same model may have multiple batches, images only for reference.

RL1218JK-070R16L

Part No RL1218JK-070R16L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.16 OHM 1W 1812 WIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series RL
Package Tape & Reel
Product Status Active
Resistance 160 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±700ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Ratings AEC-Q200
Size / Dimension 0.120" L x 0.181" W (3.05mm x 4.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375266-RL1218JK-070R16L
Ultra Librarian 3D Model Ultra Librarian RL1218JK-070R16L CAD Model

Description

The YAGEO RL1218JK-070R16L is a chip resistor designed for surface mount applications.

  • Series: RL
  • Package: Wide 1812 (4532 Metric), 1218
  • Resistance: 160 mOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±700ppm/°C
  • AEC-Q200: Rated
  • Moisture Resistant: Yes
  • Size: 0.120" L x 0.181" W (3.05mm x 4.60mm)
  • Height: 0.026" (0.65mm)
  • Packaging: Tape and Reel
