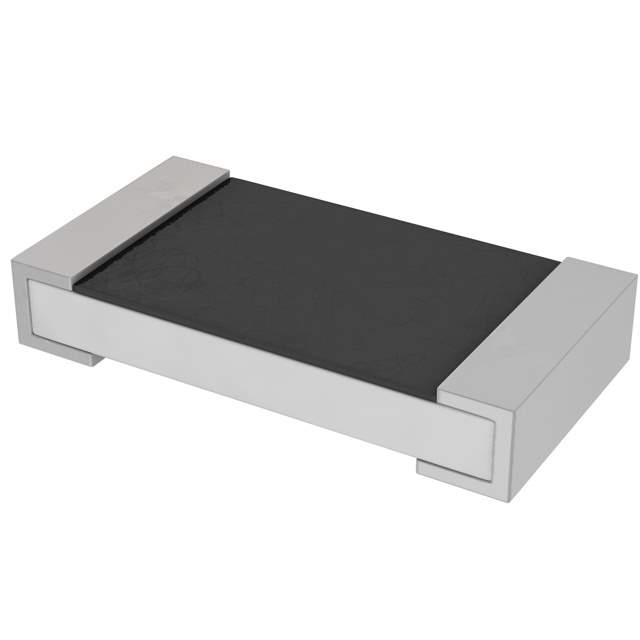

RL1206FR-070R08L Real Image
Same model may have multiple batches, images only for reference.

RL1206FR-070R08L

Part No RL1206FR-070R08L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.08 OHM 1% 1/4W 1206 / 80 mOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr YAGEO
Series RL
Package Tape & Reel (TR)
Resistance 80 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±1000ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 972216-RL1206FR-070R08L
Ultra Librarian 3D Model Ultra Librarian RL1206FR-070R08L CAD Model

Description

The 972216-RL1206FR-070R08L is a chip resistor designed for surface mount applications.

  • Series: RL
  • Package Type: Tape & Reel (TR)
  • Tolerance: ±1%
  • Temperature Coefficient: ±1000ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Resistance: 80 mOhms
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Temperature Range: -55°C ~ 155°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • ECCN: EAR99
