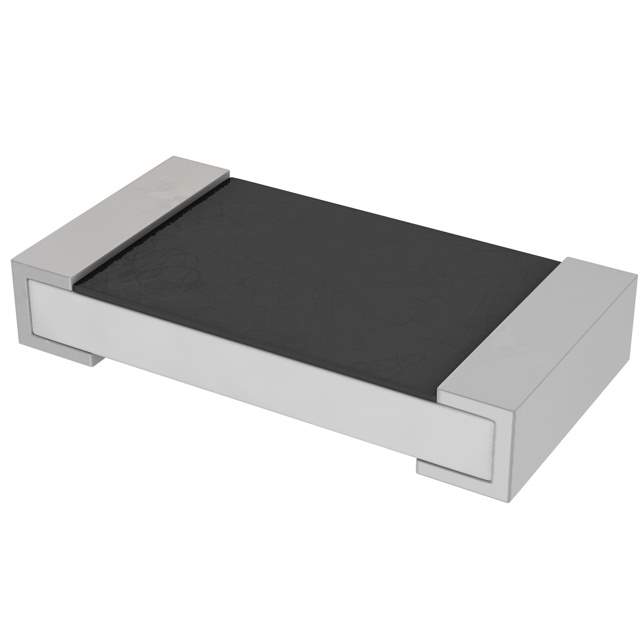

The RL1206FR-070R015L is a surface-mount thick film chip resistor manufactured by Yageo. It's designed for precision current sensing and other applications requiring very low resistance values.

Applications:

• Current sensing in power supplies
• Battery management systems
• Motor control circuits
• Overcurrent protection
• Voltage regulation

Features:

• Size: 1206 (3216 Metric)
• Resistance Value: 0.015 Ohms (15 mOhms)
• Tolerance: 1%
• Temperature Coefficient: ±100 ppm/°C
• Power Rating: 0.25W (1/4W)
• Thick Film Technology
• RoHS Compliant

Benefits:

• Low Resistance Value: Enables accurate current sensing.
• High Precision: 1% tolerance ensures accurate resistance.
• Compact Size: The 1206 package allows for high-density circuit designs.
• Stable Performance: The thick film construction provides reliable performance over a wide temperature range.
• Easy to Solder: Designed for surface mount technology (SMT) assembly.

Additional Details:

The RL1206FR-070R015L resistor features a rectangular shape with wraparound terminations for secure soldering to a printed circuit board (PCB). It is suitable for reflow soldering processes. This low-value resistor is often used in conjunction with operational amplifiers to create highly accurate current sensing circuits. The resistive element is carefully trimmed to achieve the precise resistance value. The operating temperature range is typically -55°C to +155°C. The resistor's construction helps it withstand various environmental conditions.
