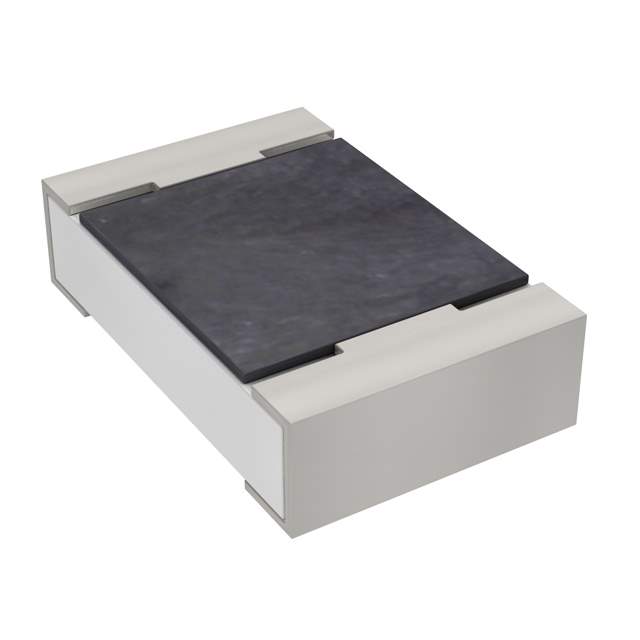

RC0805JR-07560RL Real Image
Same model may have multiple batches, images only for reference.

RC0805JR-07560RL

Part No RC0805JR-07560RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 560 OHM 5% 1/8W 0805  /  560 Ohms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr YAGEO
Series RC_L
Package Tape & Reel
Resistance 560 Ohms
Tolerance ±5%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 232273061561L,9C08052A5600JLPFT,RC0805JR07560RL,Q2711236,311-560ARDKR,311-560ARCT,311-560ARTR
Standard Package 5,000
Win Source Part Number 1039304-RC0805JR-07560RL
Ultra Librarian 3D Model Ultra Librarian RC0805JR-07560RL CAD Model

Description

The RC_L series chip resistor from YAGEO is a moisture-resistant thick film resistor with a resistance of 560 Ohms and a tolerance of ±5%.

  • Product Name: RC_L series
  • Manufacturer: YAGEO
  • Type: Thick Film Resistor
  • Resistance: 560 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Package: Tape and Reel
  • Package/Case Size: 0805 (2012 Metric)
  • Maximum Seated Height: 0.024" (0.60mm)
  • Operating Temperature Range: -55°C to 155°C
  • Number of Terminations: 2
  • Failure Rate: Not specified
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
