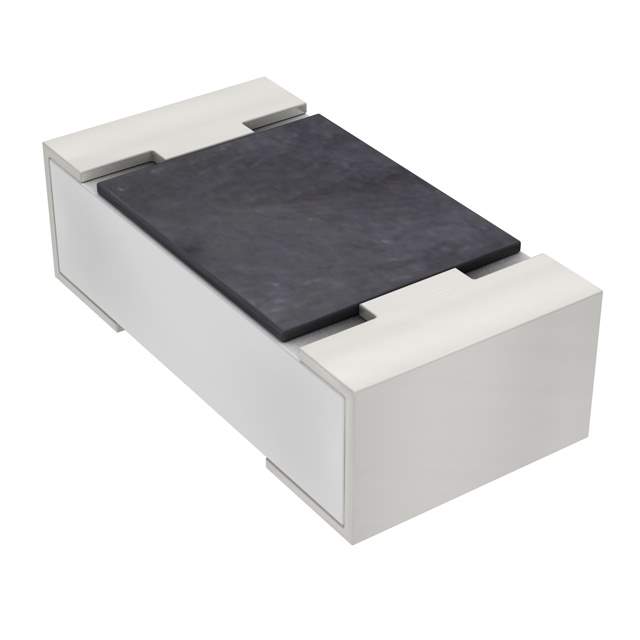

The RC0402JR-0730KL is a thick film chip resistor manufactured by Yageo. Designed for general-purpose applications in electronic circuits, this resistor is characterized by its consistent reliability and stable performance, making it well-suited for a wide array of applications, including consumer electronics, industrial equipment, and telecommunications devices. The RC0402JR-0730KL is engineered for surface mount technology (SMT), facilitating efficient automated assembly processes.

Applications

• General electronic circuits
• Current limitation
• Voltage division
• Pull-up and pull-down resistor configurations
• Signal termination applications

Features

• Thick Film Construction: Offers inherent stability and reliability under varied conditions.
• Surface Mount Design: Optimized for automated assembly, reducing manual handling.
• Compact Dimensions: Its 0402 form factor allows for use in dense circuit designs.
• RoHS Compliance: Free from hazardous materials, aligning with environmental protection standards.
• Broad Resistance Spectrum: Available in numerous resistance values catering to different circuit requirements.

Benefits

• Consistent Operation: Maintains a stable resistance value, ensuring consistent circuit behavior.
• Reduced Assembly Costs: The SMT design facilitates easier and more cost-effective automated assembly.
• Optimized Space Utilization: Small size is ideal for miniaturized electronic devices and high-density PCBs.
• Environmentally Compliant: RoHS-compliant, thus minimizing environmental impact.
• Versatile Use: Suitable for a multitude of applications within general electronic design.

Specifications

The RC0402JR-0730KL chip resistor features a resistance of 30 kOhms and is available in a compact 0402 package. It possesses a tolerance of 5% and a power rating of 0.063W (or 1/16W). Its Temperature Coefficient of Resistance (TCR) is ±200 ppm/°C, and it operates effectively between -55°C to +155°C. For exhaustive specifications and design considerations, please refer to the manufacturer’s datasheet.
