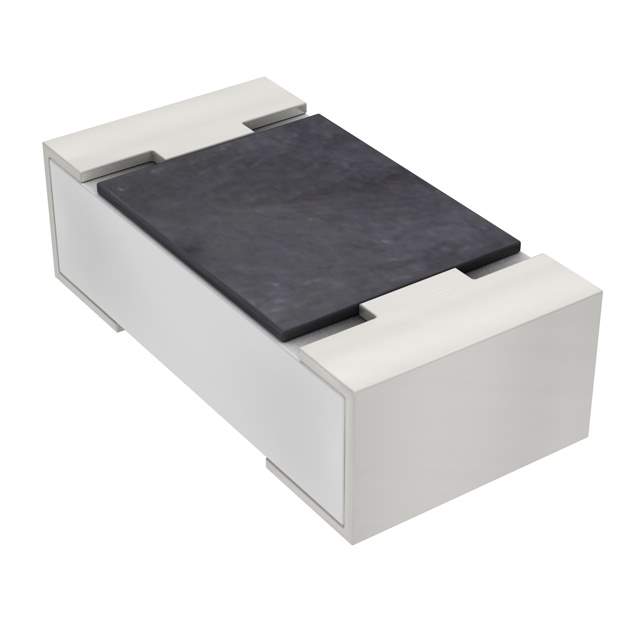

The RC0402FR-074R7L is a thick film chip resistor manufactured by Yageo. It is designed for general-purpose applications in electronic circuits, providing a stable and reliable resistance value. The 0402 designation refers to its compact size, making it suitable for high-density circuit board designs.

Applications

• Consumer electronics: Used in smartphones, tablets, laptops, and other portable devices.
• Industrial equipment: Employed in control systems, instrumentation, and power supplies.
• Automotive electronics: Utilized in various automotive control units (ECUs) and sensor circuits.
• Medical devices: Used in monitoring equipment, diagnostic tools, and other medical electronic systems.
• LED lighting: Provides current limiting and voltage division in LED driver circuits.

Features

• Small Size (0402): Allows for high-density circuit board designs.
• Thick Film Construction: Provides stable and reliable resistance values.
• Wide Resistance Range: Available in a variety of resistance values to suit different applications.
• High Reliability: Designed for long-term stability and performance.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits

• Space Savings: Small size allows for more components to be placed on a circuit board, reducing overall size.
• Stable Performance: Thick film construction ensures consistent and reliable resistance values over time.
• Versatile Application: Suitable for a wide range of electronic circuits and applications.
• Long-Term Reliability: Designed to withstand harsh environments and provide long-lasting performance.
• Environmentally Friendly: RoHS compliance ensures that the resistor does not contain hazardous substances.

Additional Details

The RC0402FR-074R7L has a resistance value of 4.7 Ohms. The power rating is typically 1/16W (0.0625W). It has a tolerance of 1%. The temperature coefficient of resistance (TCR) is typically ±100 ppm/°C. The operating temperature range is usually -55°C to +155°C. The 0402 package has dimensions of 0.4mm x 0.2mm. The resistor is suitable for reflow soldering processes. Detailed specifications, including the voltage rating and maximum operating temperature, can be found in the device's datasheet.
