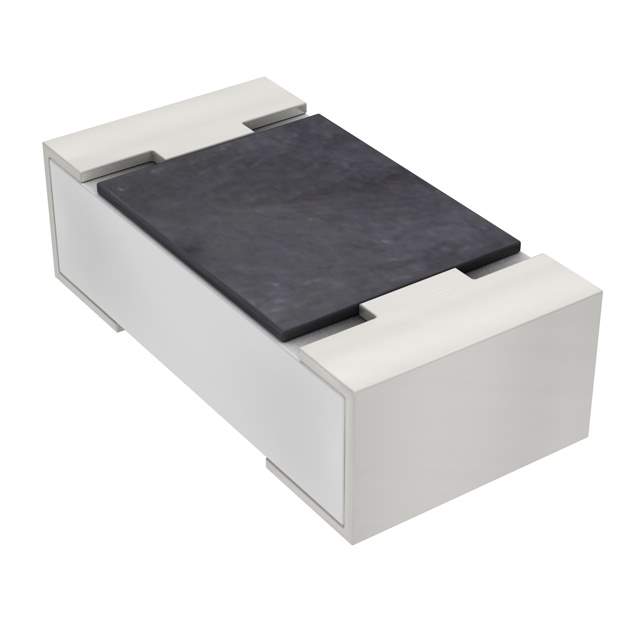

The RC0402FR-071K8L is a surface-mount thick film chip resistor manufactured by Yageo. It belongs to the RC series, known for its general-purpose applications and reliability. The '0402' designation refers to its compact physical size, making it suitable for high-density circuit boards.

Applications:

• Consumer Electronics: Used in TVs, audio equipment, and other consumer devices.
• Industrial Equipment: Employed in industrial control systems, sensors, and instrumentation.
• Telecommunications: Utilized in mobile phones, networking equipment, and communication devices.
• Automotive Electronics: Found in automotive control units and sensor circuits.
• Medical Devices: Integrated into medical monitoring and diagnostic equipment.

Features:

• Surface Mount Device (SMD): Designed for surface mount technology, allowing for automated assembly.
• Thick Film Construction: Provides stable resistance values and good reliability.
• Compact Size: The 0402 package offers a small footprint for high-density PCB layouts.
• 1.8 kΩ Resistance: Specified resistance value of 1.8 kΩ with a tolerance of 1%.
• ±1% Tolerance: Offers precise resistance value for accurate circuit performance.
• Operating Temperature Range: Typically operates within a wide temperature range.

Benefits:

• High Reliability: Provides stable and consistent performance in various operating conditions.
• Accurate Resistance: Offers precise resistance value with tight tolerance.
• Space Saving: Compact size allows for high-density PCB designs.
• Easy Assembly: Suitable for automated assembly processes, reducing manufacturing costs.
• Wide Application Range: Suitable for diverse electronic applications.

Additional Details:

The RC0402FR-071K8L is a lead-free component, complying with RoHS standards. The power rating for this resistor is typically 1/16W (0.0625W). The temperature coefficient of resistance (TCR) is an important characteristic, which indicates how much the resistance changes with temperature variations. Careful consideration of the PCB layout is important for minimizing parasitic inductance and capacitance. Storage conditions should be controlled to prevent degradation of the solderability of the terminals. The resistor is commonly supplied on tape and reel for automated placement during manufacturing.
