Same model may have multiple batches, images only for reference.

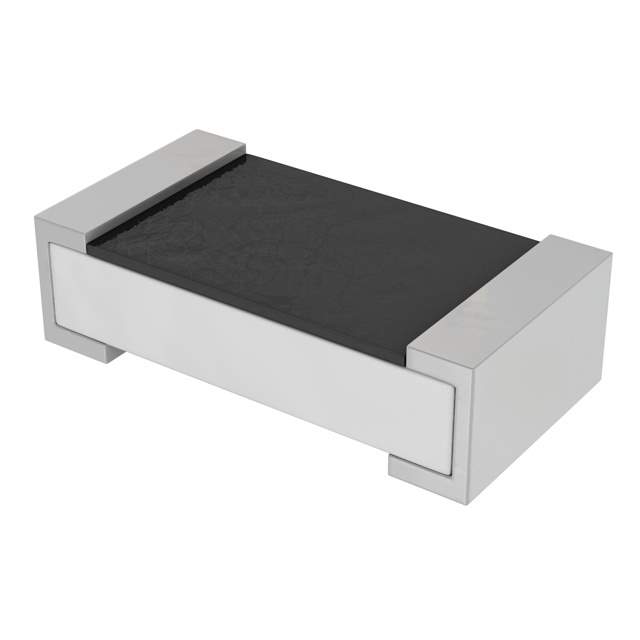

PT0603FR-7W0R1L Real Image
Same model may have multiple batches, images only for reference.

PT0603FR-7W0R1L

Part No PT0603FR-7W0R1L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1/5W 0603 / 100 mOhms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr YAGEO
Series PT
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 311-0.1ALCT,311-0.1ALTR,PT0603FR7W0R1L,311-0.1ALDKR
Standard Package 5,000
Win Source Part Number 1130229-PT0603FR-7W0R1L
Ultra Librarian 3D Model Ultra Librarian PT0603FR-7W0R1L CAD Model

Description

The PT series chip resistor is a high-quality thick film resistor designed for use in automotive applications.

  • Resistance: 100 mOhms
  • Power Rating: 0.2W
  • Ideal For: Current Sensing Applications
  • Feature: Moisture-Resistant
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Package: Tape and Reel
  • Standard Package: 5,000 pieces
  • AEC-Q200 Rated: Yes
  • Height: 0.022” (0.55mm)
  • Terminations: 2
  • Composition: Thick Film
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Alternative Part Number: PT0603FR7W0R1L
