Same model may have multiple batches, images only for reference.

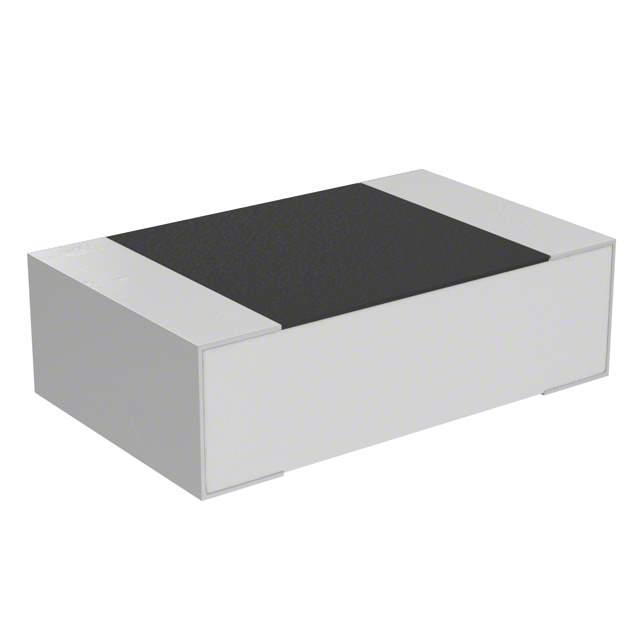

PF0805FRM7P0R02L Real Image
Same model may have multiple batches, images only for reference.

PF0805FRM7P0R02L

Part No PF0805FRM7P0R02L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.02 OHM 1% 1/8W 0805
Datasheet
PF0805FRM7P0R02L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0805
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
Win Source Part Number 1087664-PF0805FRM7P0R02L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PF0805FRM7P0R02L CAD Model

Description

The Yageo resistor is a thick film component with a tolerance of ±1%.

  • Tolerance: ±1%
  • Power: 0.125W, 1/8W
  • Resistance: 0.02 ohms
  • Temperature Coefficient: ±75ppm/°C
  • Feature: Moisture-Resistant
  • Height: 0.018" (0.45mm)
  • Packaging: Reel - TR
  • Suitable for: Resistor applications
  • Temperature Range: -55°C to 155°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
