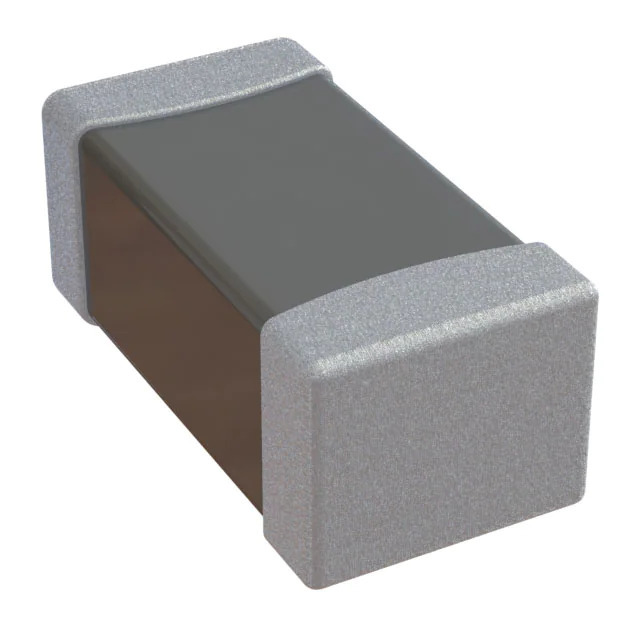

Same model may have multiple batches, images only for reference.
CQ0402ARNPO9BN3R6 Yageo
Same model may have multiple batches, images only for reference.

CQ0402ARNPO9BN3R6

Part No CQ0402ARNPO9BN3R6
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 3.6PF 50V C0G/NPO 0402 / 3.6 pF ±0.05pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr YAGEO
Series CQ
Package Tape & Reel
Product Status Active
Capacitance 3.6 pF
Tolerance ±0.05pF
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) -
Thickness (Max) 0.022" (0.55mm)
Lead Spacing -
Lead Style -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1359379-CQ0402ARNPO9BN3R6
Ultra Librarian 3D Model Ultra Librarian CQ0402ARNPO9BN3R6 CAD Model

Description

The CQ0402ARNPO9BN3R6 is a ceramic capacitor from YAGEO's CQ series. It is a general-purpose capacitor with a capacitance of 3.6pF and a voltage rating of 50V.

  • Series: CQ
  • Capacitance: 3.6pF
  • Voltage Rating: 50V
  • Applications: General Purpose
  • Mounting Type: Surface Mount
  • Package / Case: 0402 (1005 Metric)
  • Tolerance: ±0.05pF
  • Operating Temperature: -55°C to 125°C
  • RoHS: Compliant
  • REACH Status: REACH Unaffected
  • Temperature Coefficient: C0G, NP0
