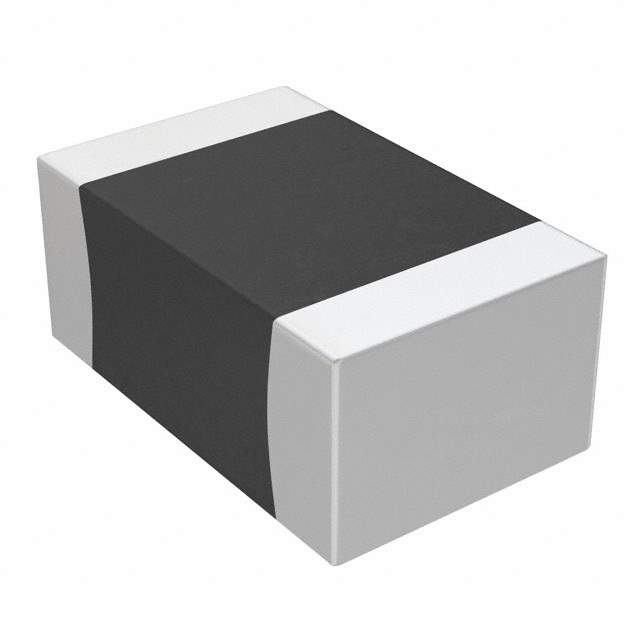

The CC0805JPX7R9BB104 is a multilayer ceramic capacitor (MLCC) manufactured by Yageo. This capacitor features a 0805 case size and utilizes an X7R dielectric material, which provides a balance between stability and volumetric efficiency. It is commonly used in various applications where moderate capacitance stability is required.

Applications

• Bypass Capacitors: Used to bypass noise and ripple in power supply circuits.
• Decoupling Capacitors: Employed to decouple ICs and other components from power supply noise.
• Filtering Circuits: Applied in filtering circuits to remove unwanted frequencies.
• General-Purpose Circuits: Utilized in various general-purpose electronic circuits.
• Energy Storage: Suitable for simple energy storage.

Features

• X7R Dielectric: Offers reasonable capacitance stability over temperature.
• 0805 Case Size: Standard size for surface mount applications.
• Multilayer Construction: Provides high capacitance in a small volume.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.
• Surface Mount Technology (SMT): Designed for automated assembly.
• High Reliability: Ensures long-term performance and stability.

Benefits

• Compact Size: Small size allows for compact circuit designs.
• Stable Performance: X7R dielectric provides reliable operation over a moderate temperature range.
• Easy Assembly: SMT design facilitates automated assembly processes.
• Environmentally Friendly: RoHS compliance reduces environmental impact.
• Versatile Application: Suitable for a wide range of electronic applications.

Additional Details

The CC0805JPX7R9BB104 has a capacitance of 0.1µF (microfarads). It has a rated voltage typically between 16V to 50V, depending on the manufacturer's exact specifications. The operating temperature range is typically -55°C to +125°C. The X7R dielectric ensures that the capacitance changes by no more than ±15% over this temperature range. This capacitor is often used in consumer electronics, industrial equipment, and automotive applications where a combination of size, stability, and cost-effectiveness is required. It is available in tape and reel packaging for automated placement. Proper soldering techniques and handling procedures are crucial for reliable performance.
