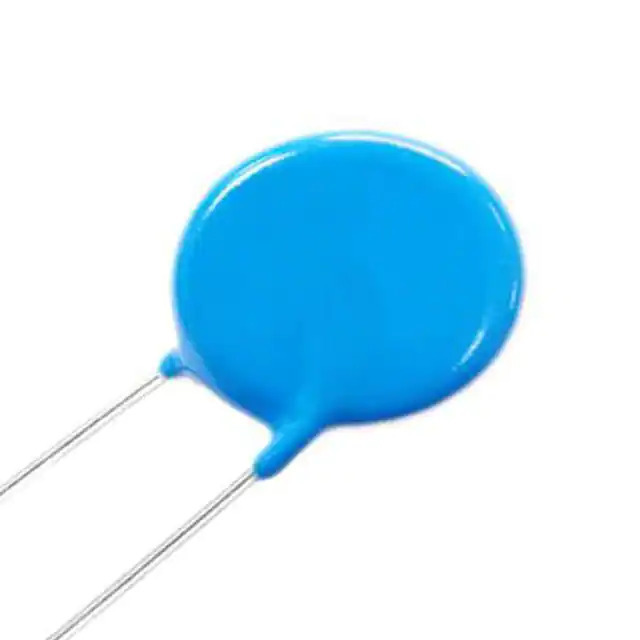

Same model may have multiple batches, images only for reference.
820KD20 Yageo
Same model may have multiple batches, images only for reference.

820KD20

Part No 820KD20
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 82 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Datasheet
820KD20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 20D
Package Bulk
Product Status Active
Maximum AC Volts 50 V
Maximum DC Volts 65 V
Varistor Voltage (Min) 74 V
Varistor Voltage (Typ) 82 V
Varistor Voltage (Max) 90 V
Current - Surge 10 kA
Energy 56J
Number of Circuits 1
Capacitance @ Frequency 4900 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Features -
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360995-820KD20
Ultra Librarian 3D Model Ultra Librarian 820KD20 CAD Model

Description

The YAGEO 20D series varistor is a circuit protection component used in transient voltage suppression applications.

  • Temperature Range: -40°C to 105°C
  • Varistor Voltage: 74V to 90V
  • Surge Current Rating: 10kA
  • Energy Rating: 56J
  • Package: Disc 20mm
  • Mounting Type: Through Hole
  • Product Status: Active
