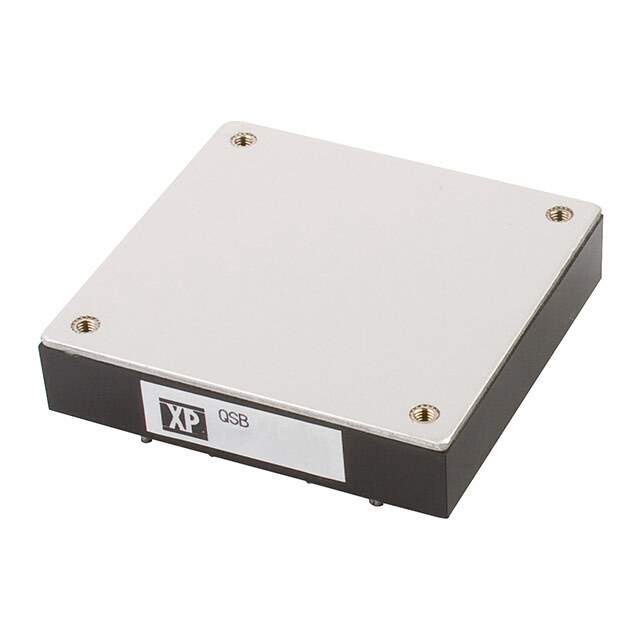

Same model may have multiple batches, images only for reference.

QSB35048S48

Name: QSB35048S48
Brand: XP Power
SKU: 1340209
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	QSB35048S48
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 48V 350W / Isolated Module DC DC Converter 1 Output 48V 7.3A 36V - 75V Input
Datasheet	QSB35048S48 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	QSB (350W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	48V
Current - Output (Max)	7.3A
Power (Watts)	350 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	92%
Mounting Type	Through Hole
Package / Case	9-DIP Module
Size / Dimension	2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
Control Features	Enable, Active High
Base Product Number	QSB35048
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340209-QSB35048S48
Ultra Librarian 3D Model	Ultra Librarian QSB35048S48 CAD Model

Alternative Products

Description

The QSB (350W) isolated module is a power supply board mount DC DC converter that is designed to deliver 350W power.

Features: equipped with remote On/Off, OCP, OTP, OVP, and SCP features that ensure its safety and reliability
Package: a box
Size: 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
Application: suitable for ITE (Commercial) applications
Control Features: Enable and Active High
Voltage Isolation: 1.5 kV
Outputs: only one output
Maximum Current Output: 7.3A
Input Voltage Range: 36V to 75V
Efficiency: 92%
Mounting: mounted through a hole
Package/Case: 9-DIP module
Operating Temperature: -40°C ~ 100°C
