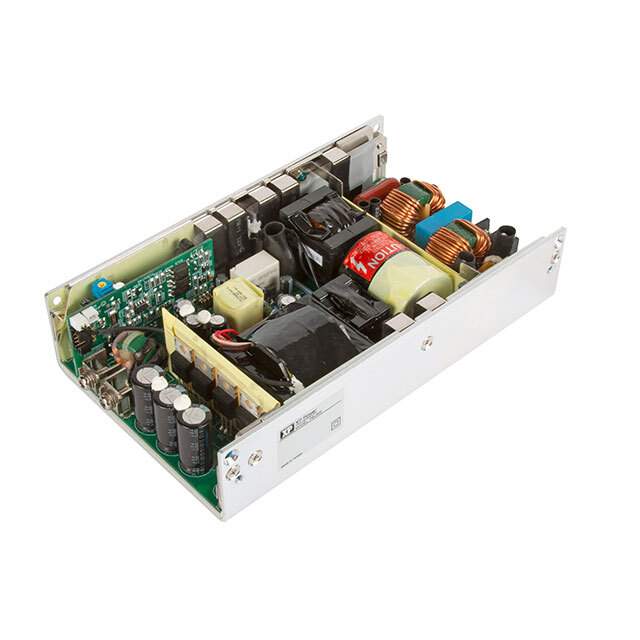

PBL500PS48B Real Image
Same model may have multiple batches, images only for reference.

PBL500PS48B

Part No PBL500PS48B
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 48V 250W / Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input
Datasheet
PBL500PS48B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series PBL500 (500W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 80 ~ 264 VAC
Voltage - Output 1 48V
Current - Output 1 5.21 A
Power (Watts) 250W (500W Forced Air)
Applications Medical
Voltage - Isolation 4 kV
Efficiency 90%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features PFC, Remote On/Off, Remote Sense, Standby Output
Mounting Type Chassis Mount
Size / Dimension 7.10" L x 4.00" W x 1.56" H (180.3mm x 101.6mm x 39.6mm)
Approval Agency CB, TUV, UL
Standard Number 60601-1
Minimum Load Required No
Base Product Number PBL500
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 1351622-PBL500PS48B
Ultra Librarian 3D Model Ultra Librarian PBL500PS48B CAD Model

Description

The PBL500PS48B is a 250W (500W forced air) open frame power supply with a voltage input range of 80 ~ 264 VAC. It has a voltage output of 48V and an efficiency of 90%.

  • Minimum Load: None
  • Features: PFC, Remote On/Off, Remote Sense and Standby Output
  • Ideal for: Medical Applications
  • Ingress Protection: IP50 - Dust Protected
  • Shielded: Yes
  • Temperature Range: -10°C ~ 70°C (with derating)
  • Current Output: 5.21 A
  • Mounting Type: Chassis Mount
  • Package: Box
  • Size/Dimension: 7.10" L x 4.00" W x 1.56" H (180.3mm x 101.6mm x 39.6mm)
  • Approvals: CB, TUV and UL
  • Standard Number: 60601-1
