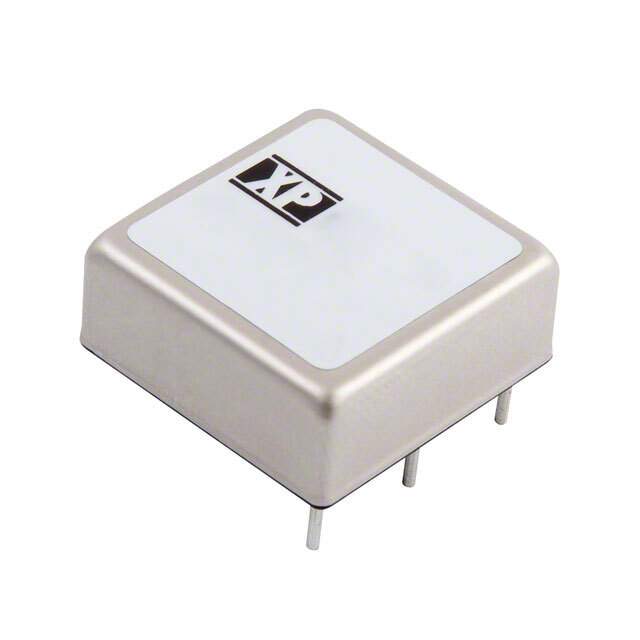

Same model may have multiple batches, images only for reference.

JTK1548S05

Name: JTK1548S05
Brand: XP Power
SKU: 1335163
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTK1548S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input
Datasheet	JTK1548S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	XP Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	86%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTK1548
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	10
Win Source Part Number	1335163-JTK1548S05
Ultra Librarian 3D Model	Ultra Librarian JTK1548S05 CAD Model

Alternative Products

Description

The XP Power isolated module is a DC-DC converter with a remote on/off feature and overcurrent, overvoltage, and short circuit protection.

Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Mounting Type: Through Hole
Power: 15 W
Voltage Isolation: 1.6 kV
Control Feature: Enable, Active High
Voltage Input: 18V to 75V
Output: Single
Current Output (Max): 3A
Voltage Output: 5V
Efficiency: 86%
Temperature Range: -40°C to 100°C
Packaging: Tube
Standard Package: 10
Application: ITE (Commercial)
