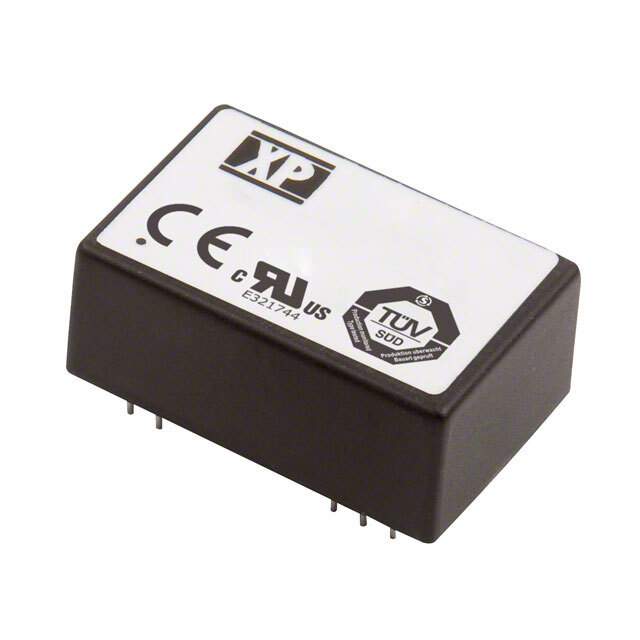

Same model may have multiple batches, images only for reference.

JHM1005S05

Name: JHM1005S05
Brand: XP Power
SKU: 1349884
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JHM1005S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 4.5V - 9V Input
Datasheet	JHM1005S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JHM (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	4 kV
Applications	Medical
Features	OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	83.5%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm)
Base Product Number	JHM1005
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349884-JHM1005S05
Ultra Librarian 3D Model	Ultra Librarian JHM1005S05 CAD Model

Alternative Products

Description

The XP Power JHM1005S05 is a power supply board mount DC DC converter component that is widely used in medical applications.

Manufacturer: XP Power
Module Type: Isolated
Protection Features: OCP, OVP, SCP, UVLO
Power Output: 10W
Voltage Isolation: 4 kV
