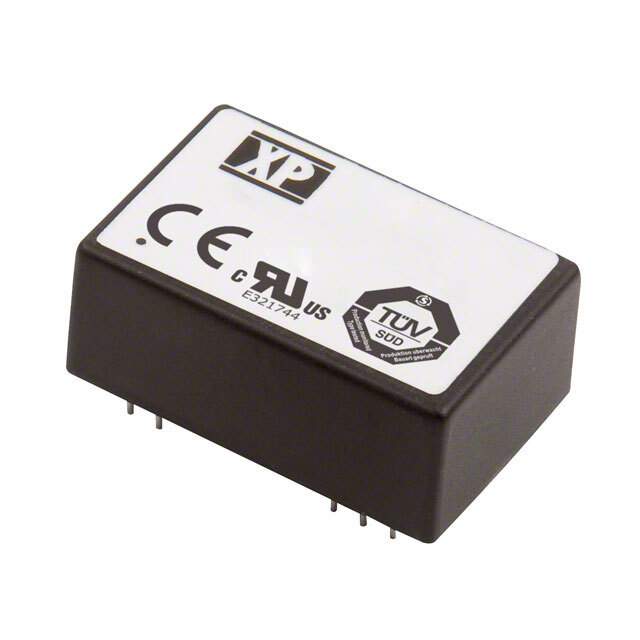

Same model may have multiple batches, images only for reference.

JHM1005D12

Name: JHM1005D12
Brand: XP Power
SKU: 1338368
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JHM1005D12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 420mA, 420mA 4.5V - 9V Input
Datasheet	JHM1005D12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JHM (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	420mA, 420mA
Power (Watts)	10 W
Voltage - Isolation	4 kV
Applications	Medical
Features	OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Size / Dimension	1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm)
Base Product Number	JHM1005
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338368-JHM1005D12
Ultra Librarian 3D Model	Ultra Librarian JHM1005D12 CAD Model

Alternative Products

Description

The JHM1005D12 is a DC DC converter from XP Power.

Manufacturer: XP Power
Product: JHM1005D12
Type: DC DC converter
Series: JHM (10W)
Application: Board mount
Packaging: Tube
Standard Package: 10
Ideal For: Medical applications requiring high power and efficiency
