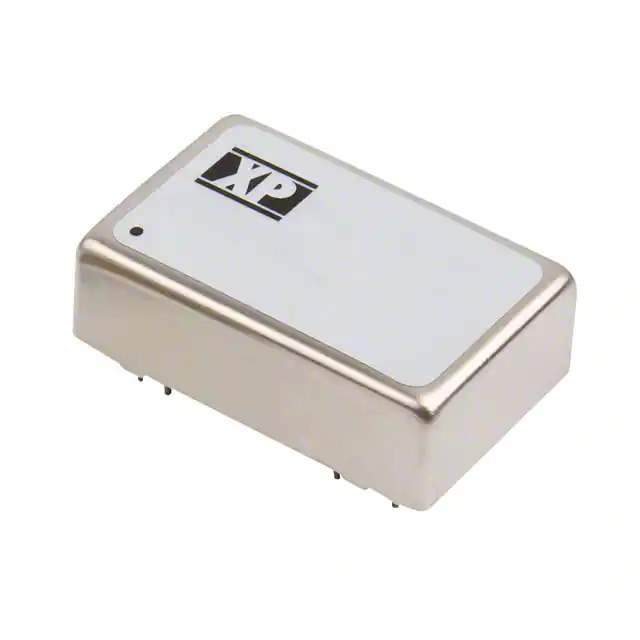

Same model may have multiple batches, images only for reference.

JCJ1012S05

Name: JCJ1012S05
Brand: XP Power
SKU: 876189
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JCJ1012S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W
Datasheet	JCJ1012S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCJ (10W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	11-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Number	62368-1
Base Product Number	JCJ1012
Standard Package	10 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876189-JCJ1012S05
Ultra Librarian 3D Model	Ultra Librarian JCJ1012S05 CAD Model

Alternative Products

Description

The JCJ (10W) series is an isolated module DC-DC converter with a power rating of 10W.

Manufacturer: XP Power
Product Name: JCJ (10W) series
Power Rating: 10W
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Application: ITE (Commercial)
Voltage Isolation: 1.5 kV
Output Voltage: 5V
Maximum Output Current: 2A
Input Voltage Range: 9V to 18V
Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP), and Short Circuit Protection (SCP)
Efficiency: 86%
Mounting: Through-hole
Status: Active
