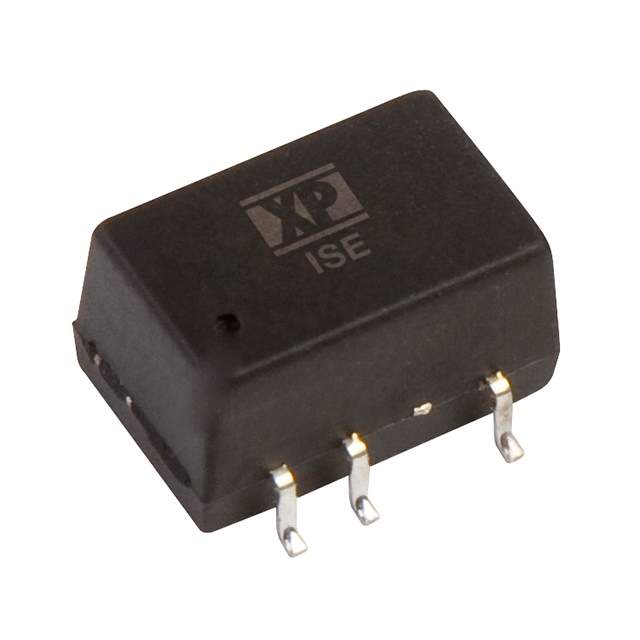

Same model may have multiple batches, images only for reference.

ISE1215A-H

Name: ISE1215A-H
Brand: XP Power
SKU: 1341263
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ISE1215A-H
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input
Datasheet	ISE1215A-H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	ISE (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Current - Output (Max)	67mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	81%
Mounting Type	Surface Mount
Package / Case	8-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.33" W x 0.28" H (12.7mm x 8.3mm x 7.0mm)
Standard Number	61000
Base Product Number	ISE1215
Standard Package	38
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1341263-ISE1215A-H
Ultra Librarian 3D Model	Ultra Librarian ISE1215A-H CAD Model

Alternative Products

Description

The XP Power DC-DC Converter is a 1W isolated module that converts an input voltage of 10.8V to 13.2V to an output voltage of 15V.

Power: 1W
Input Voltage: 10.8V to 13.2V
Output Voltage: 15V
Series: ISE (1W)
Size: 0.50" L x 0.33" W x 0.28" H (12.7mm x 8.3mm x 7.0mm)
Package: 38
Voltage Isolation: 3 kV
Number of Outputs: One
Maximum Output Current: 67mA
Efficiency: 81 percent
Protection: Short-circuit protection (SCP)
Mounting Type: Surface-mountable
Package/Case: 8-SMD module, 5 leads
Operating Temperature: -40°C to 105°C (with derating)
HTSUS: 8504.40.9580
