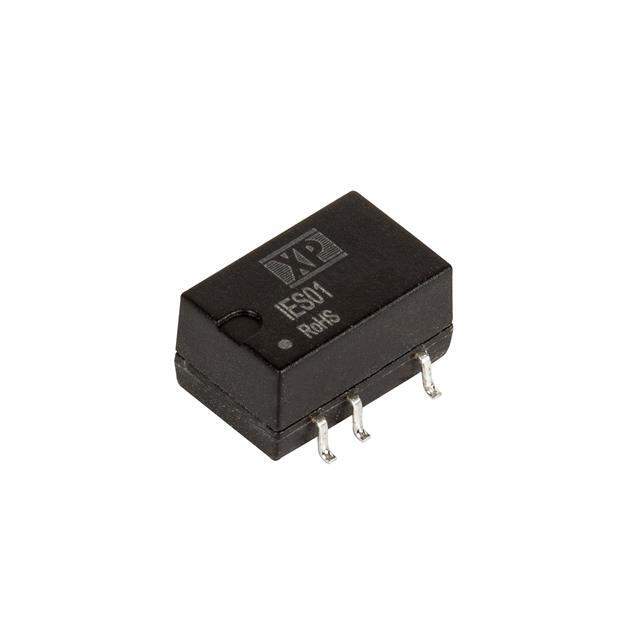

IES0112S12

Name: IES0112S12
Brand: XP Power
SKU: 1352075
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IES0112S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
Datasheet	IES0112S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IES01 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	84mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	83%
Mounting Type	Surface Mount
Package / Case	8-SMD Module, 5 Leads
Size / Dimension	0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency	CE, UKCA, UL
Standard Number	62368-1
Standard Package	38
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352075-IES0112S12
Ultra Librarian 3D Model	Ultra Librarian IES0112S12 CAD Model

Alternative Products

Description

The IES01 (1W) series isolated module DC-DC converter from XP Power is a power supply board mount DC-DC converter.

Power: 1W
Package: 38
Voltage Isolation: 1.5 kV
Efficiency: 83%
Mounting Type: Surface Mount
Package/Case: 8-SMD Module, 5 Leads
Operating Temperature: -40°C to 105°C (with derating)
Application: ITE (Commercial)
Power Output: 1W
Current Output: 84mA
Input Voltage: 10.8V to 13.2V
Output Voltage: 12V
