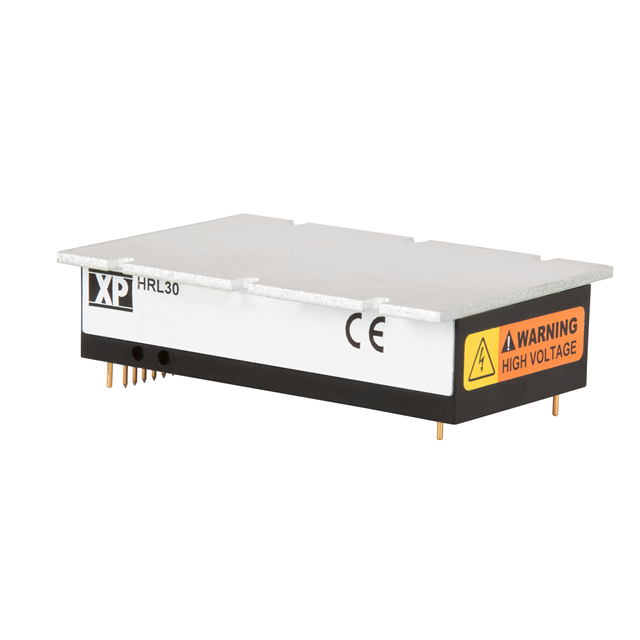

HRL3024S1K0P Real Image
Same model may have multiple batches, images only for reference.

HRL3024S1K0P

Part No HRL3024S1K0P
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1000V 30W / High Voltage - Non-Isolated Module DC DC Converter 1 Output 1000V 30mA 22V - 30V Input
Datasheet
HRL3024S1K0P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series HRL30 (30W)
Package Tray
Type High Voltage - Non-Isolated Module
Number of Outputs 1
Voltage - Input (Min) 22V
Voltage - Input (Max) 30V
Voltage - Output 1 1000V
Current - Output (Max) 30mA
Power (Watts) 30 W
Applications ITE (Commercial)
Features Adjustable Output, Baseplate
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Type Through Hole
Package / Case 14-DIP Module
Size / Dimension 3.00" L x 2.00" W x 0.73" H (76.2mm x 50.8mm x 18.6mm)
Approval Agency CE
Standard Number 62368-1
Base Product Number HRL3024
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351501-HRL3024S1K0P
Ultra Librarian 3D Model Ultra Librarian HRL3024S1K0P CAD Model

Description

The XP Power HRL3024S1K0P is a high voltage, non-isolated module power supply for board mount DC DC converters.

  • Series: HRL30 (30W)
  • Features: Adjustable Output and Baseplate
  • Package: Tray
  • Size / Dimension: 3.00" L x 2.00" W x 0.73" H (76.2mm x 50.8mm x 18.6mm)
  • Application: ITE (Commercial)
  • Standard Package: 1
  • Power (Watts): 30W
  • Number of Outputs: 1
  • Current - Output (Max): 30mA
  • Voltage - Input (Min): 22V
  • Voltage - Input (Max): 30V
  • Voltage - Output 1: 1000V
  • Efficiency: 85%
  • Mounting Type: Through Hole
  • Package / Case: 14-DIP Module
  • Supplier Device Package: Not Specified
  • Operating Temperature: -40°C to 70°C
  • MSL: 1 (Unlimited)
  • HTSUS: 8504.40.9580
  • Manufacturer: XP Power
  • Base Product Number: HRL3024
  • Approvals: CE
  • Standard Number: 62368-1
