Same model may have multiple batches, images only for reference.

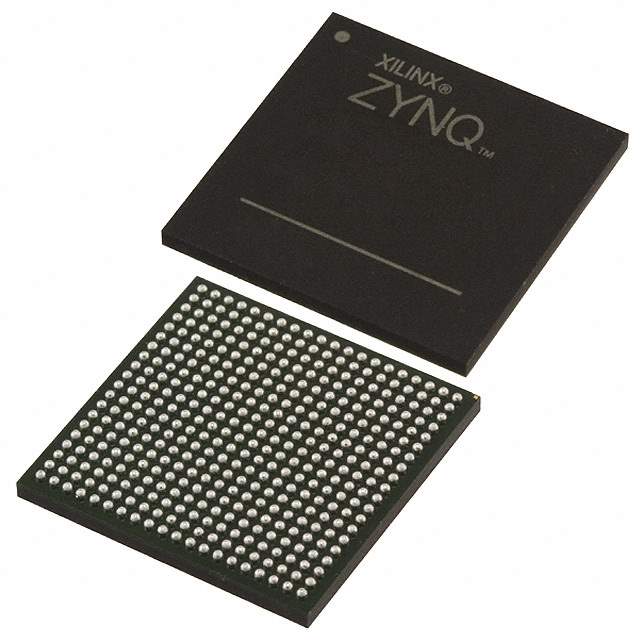

XC7Z014S-2CLG400I Real Image
Same model may have multiple batches, images only for reference.

XC7Z014S-2CLG400I

Part No XC7Z014S-2CLG400I
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 766MHZ 400BGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 65K Logic Cells 766MHz 400-CSPBGA (17x17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 766MHz
Primary Attributes Artix™-7 FPGA, 65K Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 400-LFBGA, CSPBGA
Supplier Device Package 400-CSPBGA (17x17)
Number of I/O 125
Base Product Number XC7Z014
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2004
Standard Package 90
Win Source Part Number 1323124-XC7Z014S-2CLG400I
Ultra Librarian 3D Model Ultra Librarian XC7Z014S-2CLG400I CAD Model

Description

The XC7Z014S-2CLG400I is a system-on-chip (SoC) device manufactured by AMD Xilinx.

  • Processor: Single ARM® Cortex®-A9 MPCore™ with CoreSight™
  • Speed: 766MHz
  • RAM: 256KB
  • Package: 400-CSPBGA (17x17)
  • Temperature Range: -40°C to 100°C
  • Regulations: REACH and ROHS3 compliant

It is currently in limited supply and demand.
